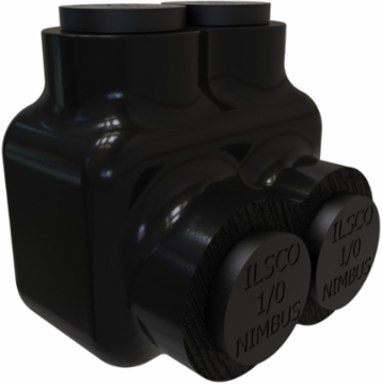

ILSCO PBTS-2-1/0 Insulated Aluminum Multi-Tap Connector 1-0 to 14 AWG, 2 Ports, Tin Plated
- MPN: PBTS-2-1/0
- UPC: 783669079241
- PPN: ILC-PBTS-2-1/0
CAD
$45.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Insulated Aluminum Multi-Tap Connector 1-0 to 14 AWG, 2 Ports, Tin Plated
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 600 V
- Flammability Rating
- UL 94 Insulation
- Conductor Range Aluminum Solid
- 10 Sol - 14 Sol
- Conductor Range Copper Solid
- 10 Sol - 14 Sol
- Number of Poles
- 1
- Number of Usable Ports
- 2
- Drive Type
- Internal Hex
- Wire Binding Screw Size
- 3/8 in
- Number of Wire Binding Screws per Port
- 1
- Width
- 1.599 in | 40.61 mm
- Max Insulation Outside Diameter
- 0.511 in | 12.98 mm
- Material
- Aluminum
- Conductor Type
- Solid, Stranded
- Connector Finish
- Tin
- Wire Binding Hardware Finish
- Tin
- Cap Color Tap
- Black
- Environmental Conditions
- Cold temperature rated to -45°C
- Compliance
- UL 486A/B Listed, CSA Certified (C22.2 No. 65-03)
- UL File Number
- E6207
- CSA Standard
- C22.2 No. 65-03
- Contains DE-OX®
- Yes
- Replacement Part(s)
- PORTPLUG-1/0, SCREWCAP-1/0
Temperature Rating90°C
Conductor Range Aluminum Stranded1/0 Str - 14 Str
Conductor Range Copper Stranded1/0 Str - 14 Str
Number of Conductors2
Number of Ports2
Number of Usable Taps2
Drive Size3/16 in
Wire Binding TorqueSee detailed specs by wire gauge
Length1.623 in
Height1.627 in | 41.33 mm
Weight0.134 lb
Conductor MaterialAluminum, Copper
Insulation MaterialPlastisol
Wire Binding Hardware MaterialAluminum
Cap Color MainBlack
ColorBlack
Dual RatedYes
CSA File NumberLR-29601
UL / CULUS SpecificationUL 486A/B Listed
NEMA CodeS-588-4
UPC Code78366907924
