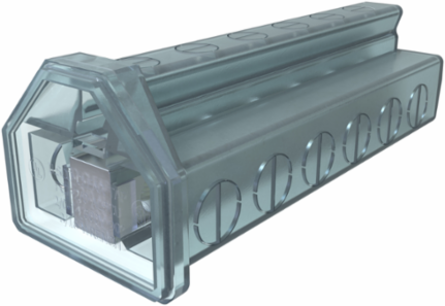

ILSCO PCT-6-2/0 Cleartap Insulated Aluminum Multi-Tap Connector, 6 Ports, Conductor Range 2/0-14, 195 Amps
- MPN: PCT-6-2/0
- UPC: 783669700442
- PPN: ILC-PCT-6-2/0
CAD
$101.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Cleartap Insulated Aluminum Multi-Tap Connector, 6 Ports, Conductor Range 2/0-14, 195 Amps
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.919 in | 48.7426 mm
- Weight
- 0.559 lbs
Length5.801 in | 147.3454 mm
Width2.252 in | 57.2008 mm
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 3/16
- Height BX (IN)
- 3.75
- Length (mm)
- 147.3454
- Max Insulation OD (mm)
- 15.621
- Width BX (IN)
- 6.5
Drive Type MainInternal Hex
Height (mm)48.7426
Max Insulation OD (IN)0.615
Weight BX (LB)3.7532
Width (mm)57.2008
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 6
- Number of Ports / Wireways
- 6
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports6
Material and Finish
- Conductor Material
- Copper, Aluminum
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 2/0 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 2/0 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 195 Amps
Conductor TypeStranded, Solid
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366970044
Carton Quantity DescriptionSTD PACK QTY 6
NEMA CodeS-588-4
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 120
Wire Binding Screw Size7/16
Color
- Color
- Clear
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Temperature Rating
- 90°C
Flammability RatingInsulation rated per UL 94
