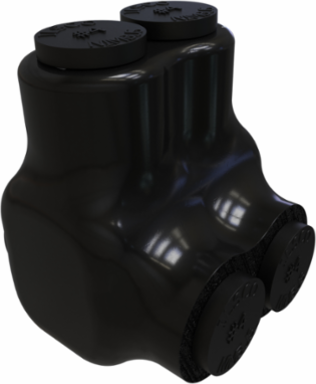

ILSCO PBTS-2-4 Nimbus Insulated Aluminum Multi-Tap Connector, 4-14 AWG, 2 Ports, Tin Plated
- MPN: PBTS-2-4
- UPC: 783669078985
- PPN: ILC-PBTS-2-4
CAD
$39.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Nimbus Insulated Aluminum Multi-Tap Connector, 4-14 AWG, 2 Ports, Tin Plated
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 600 V
- Flammability Rating
- UL 94
- Number of Poles
- 1
- Number of Ports
- 2
- Length
- 1.168 in | 29.67 mm
- Width
- 1.254 in | 31.85 mm
- Drive Size
- 1/8 in
- Connection
- Mechanical
- Insulation
- Plastisol
- Wire Binding Hardware Material
- Steel
- Conductor Type
- Solid, Stranded
- Dual Rated
- Yes
- Prop65 Compliance
- Prop 65 Compliant
Temperature Rating90°C
Conductor Range4 Str - 14 Str AWG (Copper and Aluminum)
Number of Conductors2
Weight0.07 lb
Height1.379 in | 35.03 mm
Drive TypeInternal Hex
Wire Binding Screw Size1/4 in
MaterialAluminum
Connector FinishTin Plated
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
ComplianceUL 486A/B Listed, CSA C22.2 No. 65-03
Environmental ConditionsCold temperature rated to -45°C
ColorBlack
