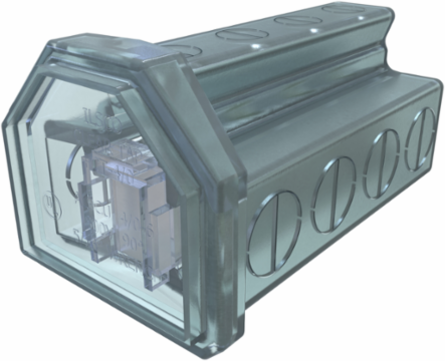

ILSCO PCT-4-4/0 Cleartap Insulated Aluminum Multi-Tap Connector 4 Ports, 4/0-6 AWG, Tin Plated, 600V
- MPN: PCT-4-4/0
- UPC: 783669700503
- PPN: ILC-PCT-4-4/0
CAD
$92.70
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Cleartap Insulated Aluminum Multi-Tap Connector 4 Ports, 4/0-6 AWG, Tin Plated, 600V
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.251 in | 57.1754 mm
- Weight
- 0.552 lbs
Length4.313 in
Width2.461 in | 62.5094 mm
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 5/16
- Height BX (IN)
- 2.75
- Max Insulation OD (IN)
- 0.74
- Weight BX (LB)
- 3.5614
- Width (mm)
- 62.5094
Drive Type MainInternal Hex
Height (mm)57.1754
Max Insulation OD (mm)18.796
Width BX (IN)6
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 4
- Number of Ports / Wireways
- 4
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports4
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 4/0 Str - 6 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 4/0 Str - 6 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 260 Amps
Conductor TypeSolid, Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366970050
Carton Quantity DescriptionSTD PACK QTY 6
NEMA CodeS-588-4
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 275
Wire Binding Screw Size9/16
Color
- Color
- Clear
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Temperature Rating
- 90°C
Flammability RatingInsulation rated per UL 94
