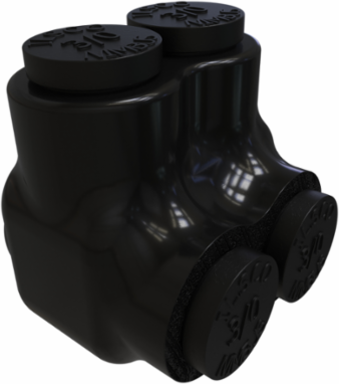

Ilsco PBTS-2-3/0 Insulated Aluminum Multi-Tap Connector 3/0-6 AWG, 2 Ports, Tin Plated, 600V
Ilsco PBTS-2-3/0 Insulated Aluminum Multi-Tap Connector 3/0-6 AWG, 2 Ports, Tin Plated, 600V
- MPN: PBTS-2-3/0
- UPC: 0783669079500
- PPN: ILC-PBTS-2-3/0
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$55.58/ EA
Specifications
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 1/4
- Height BX (IN)
- 3.75
- Max Insulation OD (IN)
- 0.62
- Weight BX (LB)
- 1.444
Drive Type MainInternal Hex
Length (mm)45.466
Max Insulation OD (mm)15.748
Width BX (IN)6
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports / Wireways
- 2
- Number of Usable Taps
- 2
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports2
Replacement Part(s)PLUG-3/0
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 3/0 Str - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)3/0 Str - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366907950
Carton Quantity DescriptionSTD PACK QTY 12
NEMA CodeS-588-4
Specifications
- Height
- 1.863 in
- Weight
- 0.208 lbs
Length1.79 in | 45.466 mm
Width1.726 in
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 200
Wire Binding Screw Size1/2
Color
- Cap Color Main
- Black
- Color
- Black
Cap Color TapBlack
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Temperature Rating
- 90°C
Flammability RatingInsulation rated per UL 94
