Ilsco PBTD-2-1/0 Insulated Aluminum Multi-Tap Connector 1/0-14, 2 Ports, Tin Plated, 600V

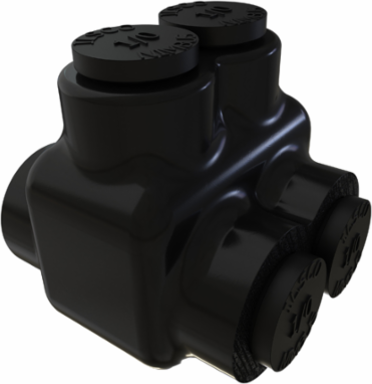

Insulated Aluminum Multi-Tap Connector 1/0-14, 2 Ports, Tin Plated, 600V
  • MPN: PBTD-2-1/0
  • UPC: 0783669077360
  • PPN: ILC-PBTD-2-1/0

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$57.72/ EA

Specifications

Voltage

Voltage Rating
600 V

Dimensions

Drive Size Main
3/16
Height BX (IN)
2
Max Insulation OD (IN)
0.511
Weight BX (LB)
1.863
Width (mm)
46.355
Drive Type MainInternal Hex
Height (mm)41.3258
Max Insulation OD (mm)12.9794
Width BX (IN)6.188

Testing Standards

CSA File Number
LR-29601
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS Specification
UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207

Additional Class Attributes

Connection
Mechanical
Number of Conductors
2
Number of Ports / Wireways
2
Number of Usable Taps
2
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports2
Replacement Part(s)PORTPLUG-1/0, SCREWCAP-1/0

Material and Finish

Conductor Material
Aluminum, Copper
Insulation
Plastisol
Wire Binding Hardware Finish
Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
1/0 Str - 14 Str
Conductor Range CU Stranded (Primary, run, main, line)
1/0 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol

Additional Technical Specifications

Conductor Type
Solid, Stranded

General

Bag Quantity
1
Dual Rated
Yes
UPC Code
78366907736
Carton Quantity DescriptionSTD PACK QTY 12
NEMA CodeS-588-4

Specifications

Height
1.627 in | 41.3258 mm
Weight
0.126 lbs
Length1.623 in
Width1.825 in | 46.355 mm

Bolt and Screw Sizes

Number of Wire Binding Screws per Port
1
Wire Binding Torque
2/0 - 3 AWG = 50, 10 - 14 AWG = 35, 8 AWG = 40, 4 - 6 AWG = 45
Wire Binding Screw Size3/8

Color

Cap Color Main
Black
Color
Black
Cap Color TapBlack

Environment and Temperature

Environmental Conditions
Cold temperature rated to -45°C
Temperature Rating
90°C
Flammability RatingInsulation rated per UL 94
