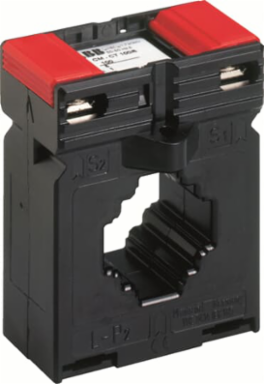

ABB 1SVR450117R1100 CM-CT 300/1 Current Transformer 300A, 5VA, Class 1, 0.29 kg
- MPN: 1SVR450117R1100
- UPC: 662019406435
- PPN: ABB-1SVR450117R1100
- UNSPSC: 39121032
CAD
$169.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CM-CT 300/1 is a plug-in current transformer from the CM-CT range. The current transformer has a rated primary current of 300 A and a secondary rated current of 1 A. The burden of the current transformer is 5 VA and its precision is according to class 1. The CM-CT 300/1 will be delivered with foot angle, insulating protective cap and bar fastening screws. A snap-on mounting for DIN rail is avaiable as accessory.
Specifications
Additional
| Primary Current | 300 A |
|---|---|
| Burden | 5 VA |
| Height | 78.5 mm |
| Width | 61 mm |
| Material/Function | Current transformer |
| RoHS Compliance | RoHS Compliant per EU Directive 2011/65/EU |
| Classification Code | T |
| ETIM | EC002048 - Current transformer |
| Secondary Current | 1 A |
|---|---|
| Accuracy Class | Class 1 |
| Length | 48 mm |
| Weight | 0.29 kg |
| Standards | IEC/EN 63000, IEC/EN 61869-1, IEC/EN 61869-2 |
| Customs Tariff Number | 85043129 |
| eClass | V11.0 : 27210902 |
