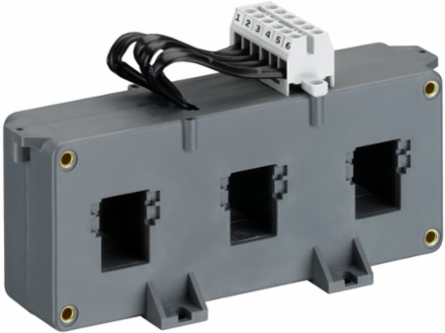

ABB 1SAJ929500R0310 CT4L310R/4, 3-Phase Current Transformer Rated nominal current range 185 … 310A
- MPN: 1SAJ929500R0310
- UPC: 804325892667
- PPN: ABB-1SAJ929500R0310
- UNSPSC: 39121032
CAD
$811.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
External current transformer for currents up to 310 A primary side. The secondary side is feed to the UMC100.3 motor controller. This enables the UMC100.3 to see up to the primary current.
Specifications
Additional
| Primary Current Range | 185 to 310 A |
|---|---|
| Terminal Type | Screw Terminals |
| Wire Stripping Length | 7 mm |
| Product Net Width | 192 mm |
| Product Net Depth | 43 mm |
| Suitable For | UMC100-FBP, UMC100.3 |
| RoHS Information | RoHS Compliant (1SVD981040-0002) |
| Suitable for Product Class | Universal Motor Controllers |
| ETIM 9 | EC002048 - Current transformer |
| WEEE Category | 5. Small Equipment (Max dimension 50 cm) |
| Current Type | 3-Phase |
|---|---|
| Connecting Capacity | 1.5-16 AWG (1x 1.5-6 mm2 flexible or rigid, 1x 16-10 AWG flexible with ferrule) |
| Recommended Screw Driver | Pozidriv 1 |
| Product Net Height | 98 mm |
| Product Net Weight | 1.442 kg |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1 |
| IDEA Granular Category Code (IGCC) | 4183 - Current transformer |
| Object Classification Code | T |
| Customs Tariff Number | 85043129 |
| WEEE B2C / B2B | Business To Business |
