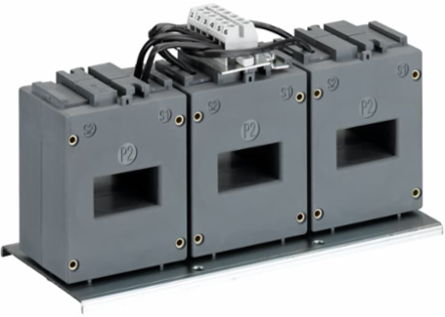

ABB 1SAJ929501R0500 CT5L500R/4, 3-Phase Current Transformer Rated nominal current range 310 … 500A
- MPN: 1SAJ929501R0500
- UPC: 804325892674
- PPN: ABB-1SAJ929501R0500
- UNSPSC: 39121032
CAD
$1119.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
External current transformer for currents up to 500 A primary side. The secondary side is feed to the UMC100.3 motor controller. This enables the UMC100.3 to see up to the primary current.
Specifications
Additional
| Amperage | 310 to 500 A |
|---|---|
| Product Net Weight | 1.7 kg |
| Product Net Depth / Length | 100 mm |
| Connecting Capacity | 1x 1.5-6 mm2 |
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 16-10 AWG; Rigid 1x 16-10 AWG |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1 |
| Product Main Type | CT |
| Suitable For | UMC100-FBP, UMC100.3 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Object Classification Code | T |
| Recommended Screw Driver | Pozidriv 1 |
| Phase | 3-Phase |
|---|---|
| Product Net Width | 245 mm |
| Product Net Height | 135 mm |
| Wire Stripping Length | 7 mm |
| Terminal Type | Screw Terminals |
| RoHS Information | 1SVD981040-0002 |
| Suitable for Product Class | Universal Motor Controllers |
| eClass | V11.0 : 27210902 |
| WEEE B2C / B2B | Business To Business |
| IDEA Granular Category Code (IGCC) | 4183 >> Current transformer |
| Customs Tariff Number | 85043129 |
