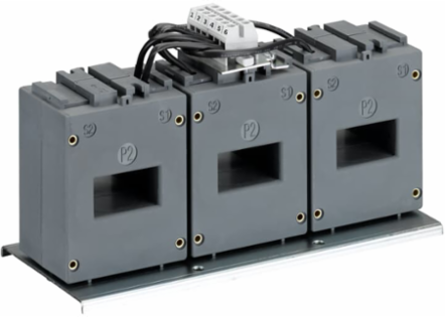

ABB 1SAJ929501R0850 CT5L850R/4, 3-Phase Current Transformer Rated nominal current range 500 … 850A
ABB 1SAJ929501R0850 CT5L850R/4, 3-Phase Current Transformer Rated nominal current range 500 … 850A
- MPN: 1SAJ929501R0850
- UPC: 804325892681
- PPN: ABB-1SAJ929501R0850
- UNSPSC: 39121032
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1208.15/ EA
Description
External current transformer for currents up to 850 A primary side. The secondary side is feed to the UMC100.3 motor controller. This enables the UMC100.3 to see up to the primary current.
Specifications
Dimensions
- Product Net Width
- 245 mm
- Product Net Height
- 135 mm
Product Net Depth / Length100 mm
Product Net Weight1.9 kg
Technical
- Connecting Capacity
- 1x 1.5-6 mm²
- Standards
- IEC/EN 60947-1IEC/EN 60947-4-1
- Suitable for Product Class
- Universal Motor Controllers
- Wire Stripping Length
- 7 mm
Recommended Screw DriverPozidriv 1
Suitable ForUMC100-FBPUMC100.3
Terminal TypeScrew Terminals
Classifications
- eClass
- V11.0 : 27210902
- IDEA Granular Category Code (IGCC)
- 4183 >> Current transformer
ETIM 9EC002048 - Current transformer
Object Classification CodeT
Environmental
- RoHS Information
- 1SVD981040-0002
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Technical UL/CSA
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 16-10 AWGRigid 1x 16-10 AWG
Ordering
- Minimum Order Quantity
- 1 piece
- Product Main Type
- CT
Customs Tariff Number85043129
