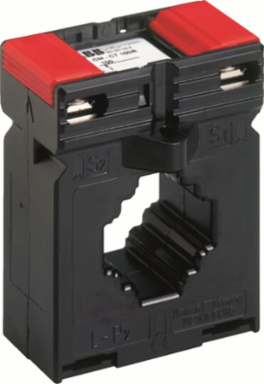

ABB 1SVR450117R1400 CM-CT 600/1 Current Transformer 600A, 5VA, Class 1, 0.24 kg
- MPN: 1SVR450117R1400
- UPC: 662019406466
- PPN: ABB-1SVR450117R1400
- UNSPSC: 39121032
CAD
$169.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CM-CT 600/1 is a plug-in current transformer from the CM-CT range. The current transformer has a rated primary current of 600 A and a secondary rated current of 1 A. The burden of the current transformer is 5 VA and its precision is according to class 1. The CM-CT 600/1 will be delivered with foot angle, insulating protective cap and bar fastening screws. A snap-on mounting for DIN rail is avaiable as accessory.
Specifications
Additional
| Primary Current | 600 A |
|---|---|
| Burden | 5 VA |
| Product Net Length | 48 mm |
| Product Net Height | 78.5 mm |
| Material Function | Current transformer |
| RoHS Compliance | RoHS Compliant (EU Directive 2011/65/EU) |
| Customs Tariff Number | 85043129 |
| ETIM 9 | EC002048 - Current transformer |
| Secondary Current | 1 A |
|---|---|
| Accuracy Class | Class 1 |
| Product Net Width | 61 mm |
| Product Net Weight | 0.24 kg |
| Object Classification Code | T |
| Standards | IEC/EN 63000, IEC/EN 61869-1, IEC/EN 61869-2 |
| eClass | V11.0 : 27210902 |
