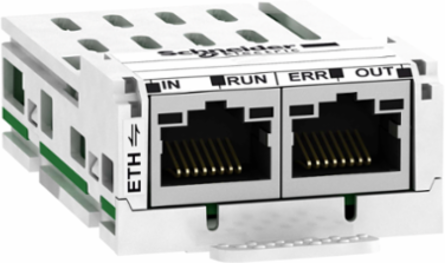

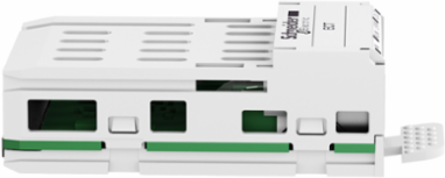

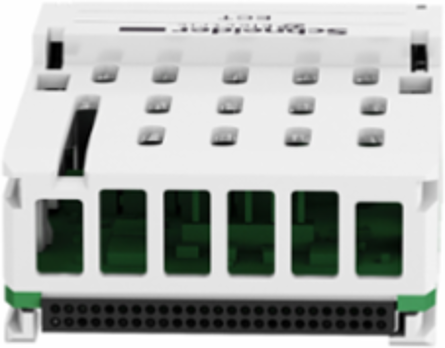

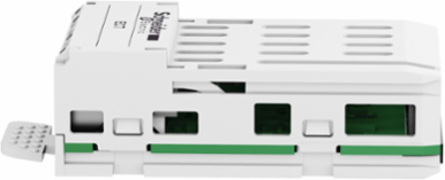

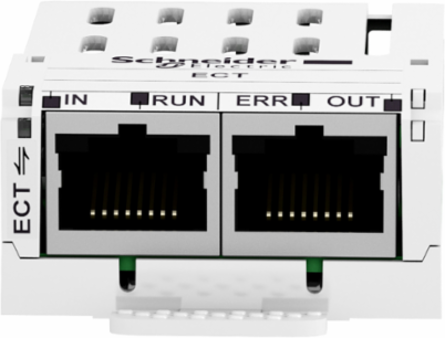

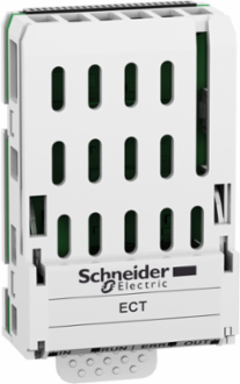

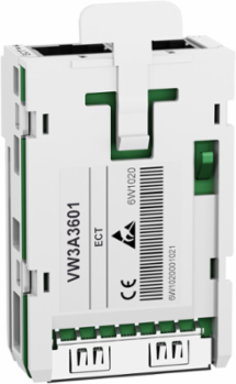

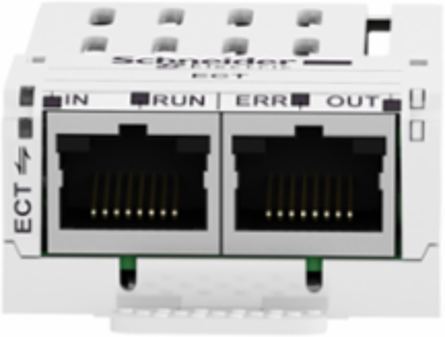

Schneider Electric VW3A3601 EtherCAT Communication Module, 100 Mbps, 2 RJ45 Connectors

  • MPN: VW3A3601
  • PPN: SCH-VW3A3601
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $571.11

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Schneider Electric Altivar EtherCAT communication module has 2 ports with RJ45 connectors. This communication module enables integration of your drive in your EtherCAT process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV930 & ATV950, Altivar 32, Lexium 32, Altivar Machine ATV320 and Altivar Machine ATV340. It weighs 0.29kg.

    Features

    • This module delivers native EtherCAT communication capabilities directly to your motor control system, enabling your variable speed drives to function as high-performance fieldbus slaves. By leveraging real-time determinism and rapid data exchange rates, it ensures your motion control applications achieve the microscopic response times and synchronization required for precision manufacturing.
    • Equipped with 2 x RJ45 connectors, this option card allows for quick, tool-less Ethernet cabling and supports cost-effective line or ring topologies without requiring external network switches. This dual-port design significantly reduces your control panel wiring footprint, minimizes potential points of failure, and lowers overall network installation costs.
    • The module operates at a reliable 100 Mbps transmission rate to guarantee instantaneous throughput of critical diagnostics, operational parameters, and control commands. This high-speed performance prevents communication bottlenecks, giving your PLC network real-time visibility into drive telemetry to maximize machine uptime and optimize predictive maintenance workflows.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, France, United States

    Communications & Management Attributes

    Communication Service
    PDO and SDO support, drive profile CiA 402 velocity mode IEC 61800-7-201 (CiA 402), CANopen over EtherCAT (CoE)
    Communication Port ProtocolEtherCAT

    Complementary Attributes

    Maximum Cable Distance Between Devices
    100 m 100 Mbps

    Important Information Attributes

    Persona Type Ids
    EU, OM
    Addressing
    logical addressing, node addressing, position addressing
    Carbon Footprint Of The Distribution Phase [A4]
    0.0077414428, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0021703128, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    0 kg CO2 eq., 0.00059042
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Device Type
    Variable speed drive - VSD option & accessory
    Traceability
    No
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Altivar
    Software Version
    EIME v5.8.1
    Total Lifecycle Carbon Footprint
    2 kg CO2 eq.
    Pep Code
    ENVPEP2010006EN
    Pep Verification Date
    2020-12-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    20
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Indonesia
    Energy Model - Use [B6]
    Electricity Mix; AC; < 1kV; EU-27
    Certificate Agency
    IEC 61800-7-201 (CiA 402)
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesEnd User, Original Equipment Manufacturer
    Display Type1 LED input status, 1 LED RUN, 1 LED error, 1 LED output status
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0271175564
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.6977560453
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1922
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionAdvanced
    Market SegmentationIndustrial
    Electrical Connection2 connectors RJ45
    Product Or Component Typecommunication module
    ReturnabilityYes
    Sustainable PackagingNo
    Transmission Rate100 Mbps
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo link the Altivar speed variator to the network, with 2 connectors RJ45, Ethernet IP/Modbus TCP during 20 years. The usage profile taken into account is 100% uptime in use phase.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime, In Kwh0.001
    Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
    Accessory / Separate Part Categorycommunication accessories
    Package Weight(Lbs)63.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP2010006EN
    Packaging Made With Recycled Cardboard
    Yes
    Product Compatibility
    Lexium 32M
    Pep Code
    ENVPEP2010006EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint1.7353757774
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    communication module
    Range Of ProductAltivar

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
