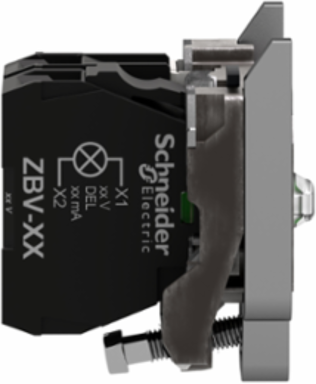

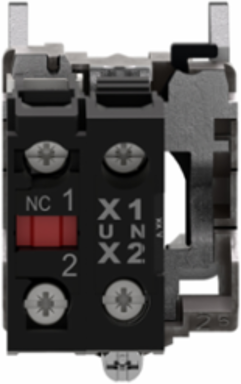

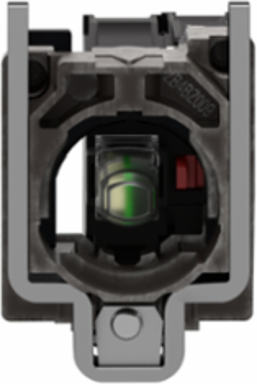

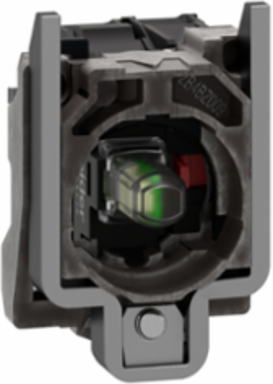

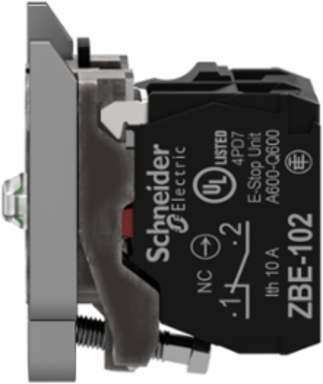

Schneider Electric ZB4BW0G12 Harmony XB4 Light Block Assembly, 1 NC, 110-120V, IP66, Universal LED
- MPN: ZB4BW0G12
- PPN: SCH-ZB4BW0G12
CAD
$75.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB4, light block with body/fixing collar is white, operates with an integral LED. It has 1 x NC contact and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4
- Light Block Supply
- direct
- Fixing Collar Material
- zamak
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity
- 1
- Light Source Colour
- white
- [Us] Rated Supply Voltage
- 110...120 V AC 50/60 Hz
Light Sourceuniversal LED
Product Or Component Typecomplete body/contact assembly and light block
Head Typestandard
Contacts Type And Composition1 NC
Contact Operationslow-break
Device Short NameZB4
Bulb Baseintegral LED
Complementary
- Contacts Usage
- standard
- Operating Force
- 2 N NC changing electrical state
- Operating Travel
- 1.5 mm NC changing electrical state) || 4.3 mm total travel)
- Positive Opening
- with IEC 60947-5-1 appendix K
- Net Weight
- 0.064 kg
- Cad Overall Height
- 47 mm
- Device Presentation
- basic sub-assemblies
- Service Life
- 100000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Cad Overall Width
- 30 mm
Terminals Description Iso N°1(11-12)NC
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Current Consumption14 mA
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady
Mechanical Durability5000000 cycles
Tightening Torque0.8-1.2 N.m IEC 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Environment
- Product Certifications
- UL listed || LROS (Lloyds register of shipping) || BV || GL || CSA || DNV
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class I IEC 60536
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsUL 508 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
