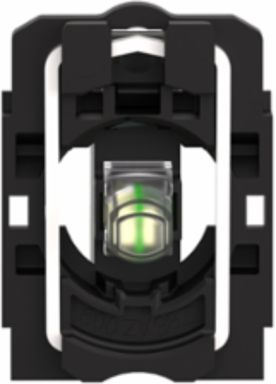

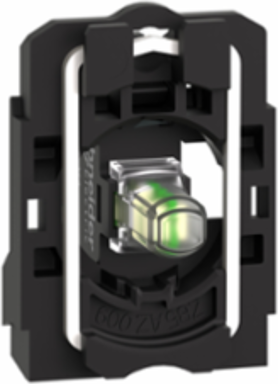

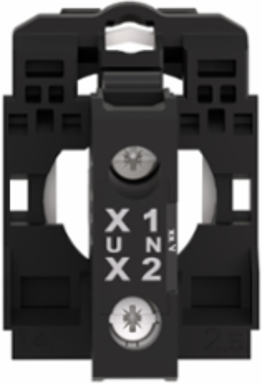

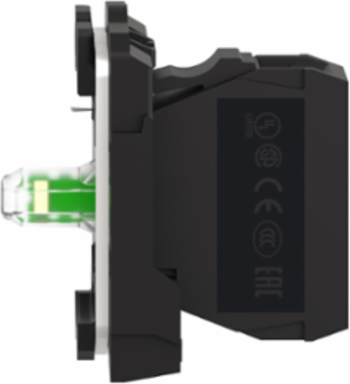

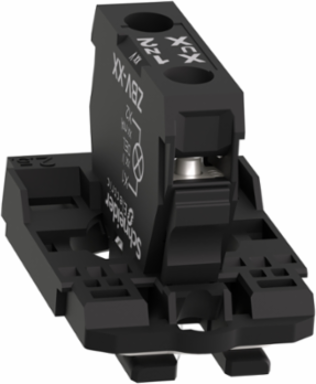

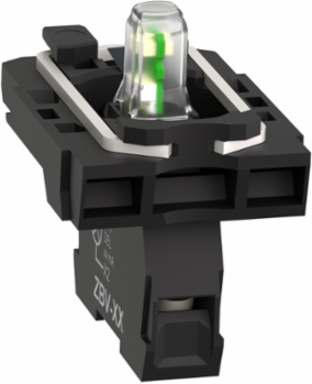

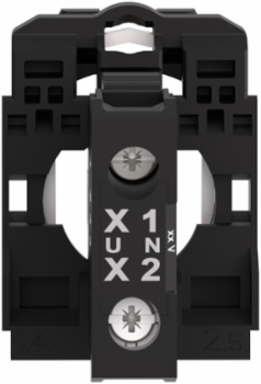

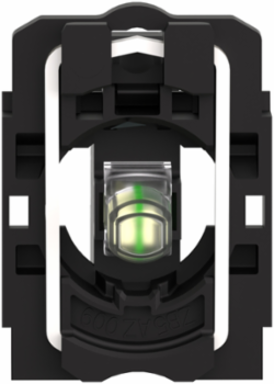

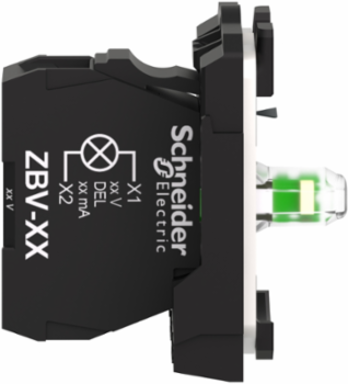

Schneider Electric ZB5AVM1 Harmony XB5 Light Block Assembly, 230-240V AC, Universal LED, IP20

MPN: ZB5AVM1
PPN: SCH-ZB5AVM1

$58.09

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United States

Physical Attributes

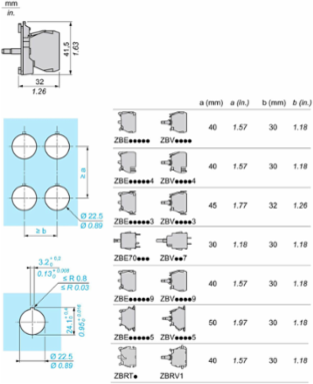

Cad Overall Depth	32 mm
Cad Overall Width	30 mm

Cad Overall Height	42 mm
Light Source Color	white

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate Agency	CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Terminals Description Iso N°1	(X1-X2)PL, (X1-X2)PL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0381657222
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.16786
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Bulb Base	integral LED
Current Consumption	14 mA
Electrical Shock Protection Class	class II conforming to IEC 60536
Fixing Collar Material	plastic
Product Or Component Type	complete body/light block assembly
Range Of Product	Harmony XB5
Resistance To Electrostatic Discharge	6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6
Returnability	Yes
Service Life	100000 h at rated voltage and 25 °C
Software Version	v5.9.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	137 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Supply Voltage 20 Supply Voltage	230...240 V
Pep Code	ENVPEP2308027EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Connections - Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Package Weight(Lbs)	21.000 g
Warranty (In Months)	18
Customs Code	8531809051

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Light Source	universal LED, universal LED
Signalling Type	steady, steady
[Us] Rated Supply Voltage	230...240 V, 230...240 V AC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]	0.0028768667, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0085488333, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	136 kg CO2 eq., 136.2946465832
Local Publishable Date	2026-01-27
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Plastic Content	16 %
Compatibility Code	ZB5
Device Short Name	ZB5
Electromagnetic Emission	class B IEC 55011
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3
Resistance To Fast Transients	2 kV IEC 61000-4-4
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Supply Voltage Limits	195-264 V AC
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Light Source Color	white
Connections Terminals 8 Connections Terminals	screw clamp terminals
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintece for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton&nbsp;power consumption is 0.432W with 71% active mode for 10 years, and it product&nbsp;complies with IEC 60947-1 standards..
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	267.9684
Recyclability Potential In %	22
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]	-0.4763

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	136.5120980054
Environmental Disclosure	ENVPEP2308027EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2308027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2308027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
