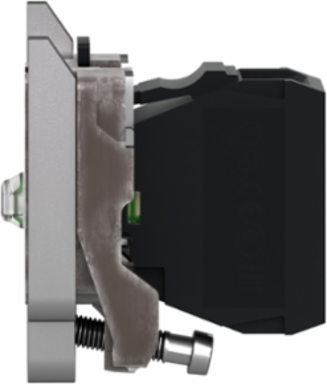

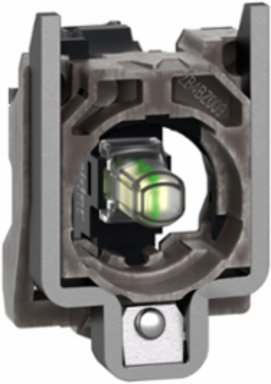

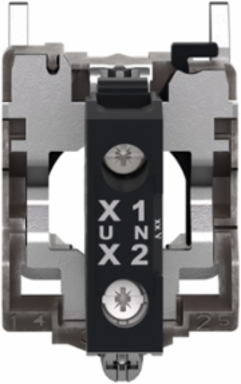

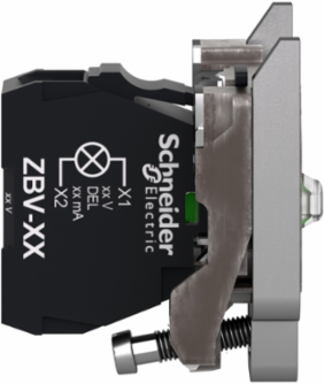

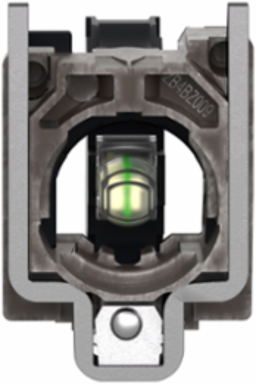

Schneider Electric ZB4BV18G1 Harmony XB4 Complete Body/Light Block Assembly, Universal LED, 110-120V AC
- MPN: ZB4BV18G1
- PPN: SCH-ZB4BV18G1
CAD
$58.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This complete body and light block assembly from Schneider Electric's Harmony XB4 series is designed to enhance automation and control applications. Featuring a universal LED with a voltage rating of 110-120V AC, this unit reliably provides illumination, making it a practical choice for operators needing clear visual signals in their setups. Crafted with precision, this assembly is not only functional but also seamlessly integrates into various pilot devices, ensuring versatile application across different industries. Its robust design and strong performance underscore its role in modern control systems, facilitating efficient and effective operation.
Documentation & Downloads
Specifications
Additional
- Voltage
- 110-120 V AC 50/60 Hz
- Rated Insulation Voltage
- 600 V IEC 60947-1
- Surge Withstand
- 1 kV IEC 61000-4-5
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Electromagnetic Emission
- Class B IEC 55011
- Service Life
- 100000 h at rated voltage and 25 °C
- Ambient Air Temperature For Storage
- -40 to 70 °C
- Shock Resistance
- 30 gn (18 ms), 50 gn (11 ms) IEC 60068-2-27
- Dimensions (W x H x D)
- 1.18 in x 1.85 in x 1.46 in (30 mm x 47 mm x 37 mm)
- Net Weight
- 0.054 kg (0.12 lb)
- Material
- Zamak
- Light Source Colour
- White
- Protective Treatment
- TH
- Tightening Torque
- 0.8-1.2 N·m IEC 60947-1
- Product Certifications
- BV, DNV, GL, LROS (Lloyds Register of Shipping), UL listed, CSA
- RoHS Compliance
- EU RoHS exempt, China RoHS X
- Environmental Disclosure
- ENVPEP1808008EN
- Country of Origin
- France
Current Consumption14 mA
Rated Impulse Withstand Voltage6 kV IEC 60947-1
Resistance To Fast Transients2 kV IEC 61000-4-4
Resistance To Electrostatic Discharge6 kV on contact, 8 kV in free air IEC 61000-2-6
Signalling TypeFlashing
Ambient Air Temperature For Operation-40 to 70 °C
Vibration Resistance5 gn (2 to 500 Hz) IEC 60068-2-6
Connection TypeScrew clamp terminals, <= 2 x 1.5 mm² with cable end, >= 1 x 0.22 mm² without cable end
Panel Cut-out Diameter22.5 mm (0.89 in) recommended
Fixing Collar MaterialZamak
Light SourceUniversal LED integral
Electrical Shock Protection ClassClass I IEC 60536
Shape Of Screw HeadCross Philips No 1, Cross Pozidriv No 1, Slotted Flat Ø4 mm, Slotted Flat Ø5.5 mm
StandardsIEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1, UL 508, IEC 60947-5-5, IEC 60947-5-4, JIS C8201-1
Mercury FreeYes
REACH RegulationContains Substances of Very High Concern above threshold
Circularity ProfileENVEOLI1808008EN
