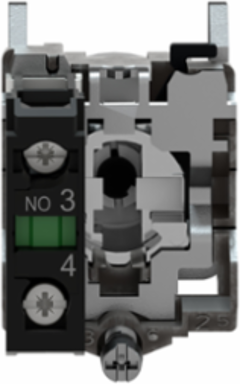

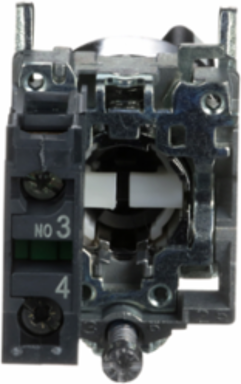

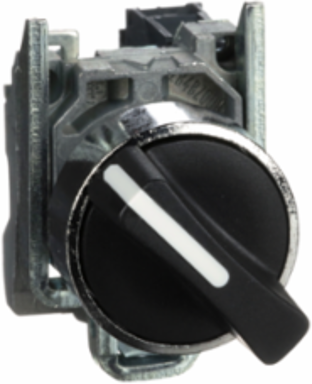

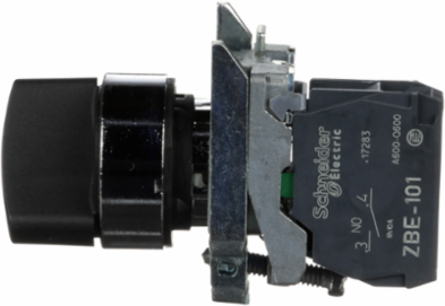

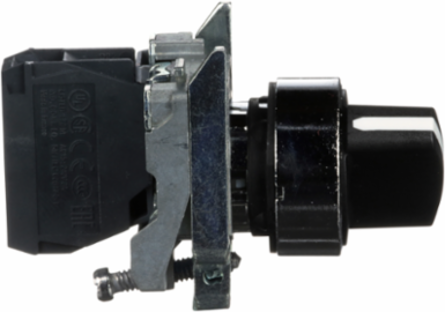

Schneider Electric XB4BD21 Harmony XB4 Black Metal Selector Switch 22mm, 2 Positions, IP69K
- MPN: XB4BD21
- PPN: SCH-XB4BD21
CAD
$48.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony XB4 Black Metal Selector Switch 22mm, 2 Positions, IP69K
Features
- Featuring a high-impact, corrosion-resistant chromium-plated metal bezel, this selector switch is built specifically for the heavy-duty rigors of manufacturing floors and outdoor control stations. Unlike plastic alternatives, the rugged metal construction resists chemical exposure and mechanical shock, ensuring long-term durability in environments where equipment is subject to constant vibration and daily washdowns.
- Designed with a 90 throw and a "stay-put" mechanism, the operator remains locked in the selected position (either ON or OFF) until manually toggled back. This provides a clear, tactile confirmation of the machine state, preventing accidental state changes and ensuring that critical processes such as conveyor activation or lighting control remain consistent without requiring constant operator intervention.
- This unit comes pre-assembled with a single ZB4 contact block utilizing screw clamp terminals for a secure, vibration-proof electrical connection. The modular design allows for easy field-addition of extra contact blocks, giving industrial electricians the flexibility to customize complex interlocking sequences or multi-circuit control logic within a standard 22mm cutout.
- Boasting an elite triple-protection rating, this XB4 series operator is completely dust-tight and can withstand high-pressure, high-temperature water jets and even temporary submersion. This makes it the ideal choice for food and beverage processing or pharmaceutical facilities where strict sanitation protocols and frequent cleaning would compromise standard electrical components.
- Fully certified for NEMA 4X and NEMA 13 environments, this selector switch is guaranteed to be water-tight, dust-tight, and oil-tight. It provides peace of mind for panel builders and plant engineers by meeting the most stringent UL and CSA safety requirements, ensuring the internal electronics remain dry and functional even in the presence of splashing oil and non-corrosive coolants.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Chile, China, France, Mexico, United States |
|---|
| Depth | 68 mm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | no, 0 |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Operator Pos Information | 2 positions 90° |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.01302, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.016101 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.061943 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308005EN |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 49 % |
| Compatibility Code | XB4 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard contacts |
| Fixing Collar Material | zamak |
| Mechanical Durability | 1000000 cycles |
| Operator Position Information | 2 positions 90° |
| Positive Opening | without |
| Product Or Component Type | selector switch |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | No |
| Torque Value | 0.14 N.m NO changing electrical state |
| Type Of Operator | stay put |
| Operator Profile 1 Operator Profile | standard handle |
| Pep Code | ENVPEP2308005EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Height Nominal | 47 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Cap/Operator Or Lens Colour | black |
| Short-circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Package Weight(Lbs) | 95.000 g |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 10.937 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 5.3866 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 127.89 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 2.1112 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 10.937 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] | 5.3866 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 11.09 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 5.3869 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 10.553 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 5.3866 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -0.1309 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Operator Profile | black, standard handle |
| Contacts Composition | 1 NO |
| Certificate Agency | BV, UL, CSA, DNV, LROS (Lloyds register of shipping) |
| Terminals Description Iso N°1 | (13-14)NO, (13-14)NO |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.11435, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.7 kg CO2 eq., 0.66275 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 19 % |
| Bezel Material | chromium plated metal |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NO |
| Device Short Name | XB4 |
| Head Type | standard |
| Mounting Diameter | 22.5 mm |
| Overvoltage Category | class I conforming to IEC 60536 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB4 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Total Lifecycle Carbon Footprint | 0.9 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Type Of Operator 3 Type Of Operator | stay put |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch's primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Width Nominal | 30 mm |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| [Us] Rated Supply Voltage | 600 V |
| Connections - Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Product Repair Index - Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.3431 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] | -2.6414 |
| Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] | -2.2032 |
| Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -2.6562 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.3431 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] | -2.6414 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.5918 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] | -2.7135 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.3431 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -2.6414 |
| Customs Code | 8536509035 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP69, IP69KIP67 IEC 60529 |
| Take Back | No |
| Recycled Metal Content At Cr Level | 19 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.868163999999999 |
| Environmental Disclosure | ENVPEP2308005EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 13, NEMA 4X, UL type 4X/13 |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308005EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | selector switch |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC001029 |
|---|
| ETIM 9 | EC001029 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
