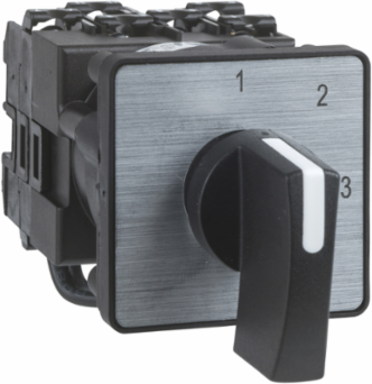

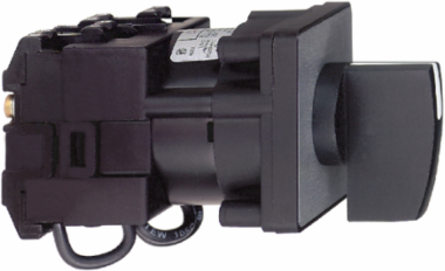

Schneider Electric K2C003HLH Harmony K Cam Switch, 3 Poles, Multifixing, 20A, 45x45mm

MPN: K2C003HLH
PPN: SCH-K2C003HLH
UNSPSC: 39122217

$69.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Harmony K Cam Switch from Schneider Electric is designed to offer a reliable and versatile switching solution in automation and control applications. Featuring three poles and a multifixing capability, this switch efficiently accommodates various installation needs while ensuring robust performance up to 20A. Its compact 45x45mm design allows for seamless integration into control panels and other machinery, making it an essential accessory for professionals seeking a dependable pilot device. This cam switch plays a crucial role in enhancing the functionality and safety of your electrical controls.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia

Physical Attributes

Cad Overall Depth	87 mm
Cad Overall Width	45 mm

Cad Overall Height	45 mm

Complementary Attributes

Maximum Operating Rate	2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-38.333 cyc/mn AC-15
Uimp Rated Impulse Withstand Voltage	4 kV in isolating function6 kV IEC 60947-1

Ui Rated Insulation Voltage	690 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Durability	200000 cycles AC-23, 200000 cycles AC-3600000 cycles AC-15, 600000 cycles AC-21
Certificate Agency	UL 240 V 1 hp 3 phaseCSA 240 V 3 hp 3 phase 2, UL 240 V 0.33 hp 1 phase 2, CSA 240 V 1 hp 1 phase
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Cam Switch Head Type	with front plate 45 x 45 mm
Component Name	K2
Electrical Connection	captive screw clamp terminals flexible 2 x 1.5 mm²captive screw clamp terminals solid 1 x 2.5 mm²
Mechanical Durability	1000000 cycles
Number Of Poles	3P
Positive Opening	with
Product Or Component Type	complete cam switch
Range Of Product	Harmony K
Returnability	Yes
Shock Resistance	30 gn IEC 68-2-27
Switching Angle	90 °
Type Of Operator	Black handle 35 mm
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Customs Code	8536509025
Ithe Conventional Enclosed Thermal Current	16 A
Short Circuit Protection	20 A cartridge fuse gG

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Overvoltage Category	class II conforming to IEC 536, class II conforming to NF C 20-030
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Cam Switch Function	switch
Compatibility Code	K2C
Contact Operation	slow-break
Fixing Mode	multifixing
Mounting Location	front
Off Position	with Off position
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Return	without
Rotary Handle Padlocking	without
Sustainable Packaging	No
Switching Positions	right: 0° - 90°
Vibration Resistance	5 gn 10-150 Hz)IEC 68-2-6
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	20 A
Short Circuit Current	10000 A
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-55 °C, -25-55 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2312055EN
Ip Degree Of Protection	IP40 conforming to IEC 60529
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2312055EN
