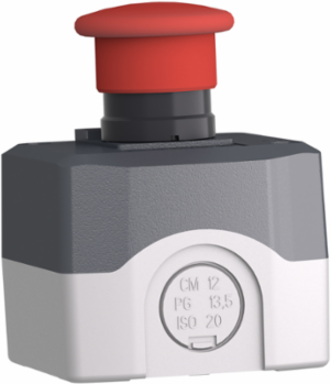

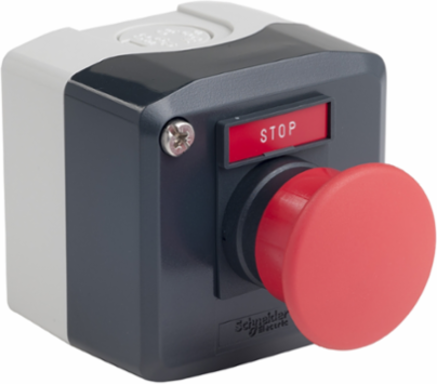

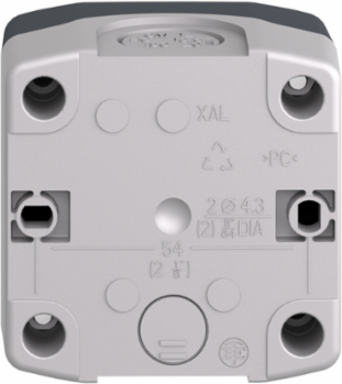

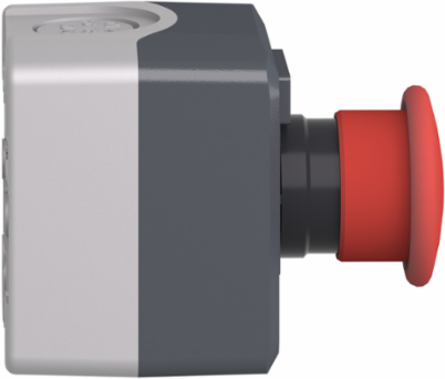

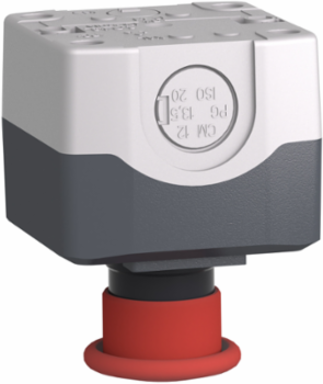

Schneider Electric XALD164H29H7 Harmony Control Station, 40mm Mushroom Pushbutton, IP66/IP69K, -40 to 70 C

  • MPN: XALD164H29H7
  • PPN: SCH-XALD164H29H7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $87.48

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XALD dark grey control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with mushroom head push button is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia, United States

    Physical Attributes

    Color Of Base Of Enclosure
    light grey RAL 7035)
    Housing Color
    grey
    Color Of Coverdark greydark grey RAL 7016)

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    [Ie] Rated Operational Current
    6 A 120 V, AC-15, A600 IEC 60947-5-13 A 240 V, AC-15, A600 IEC 60947-5-11.2 A 600 V, AC-15, A600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.3 kg CO2 eq., 0.34960389860651847
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.9 kg CO2 eq., 0.8889006550804631
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Compatibility Code
    XALD
    Contacts Material
    silver alloy (Ag/Ni)
    Control Station Composition

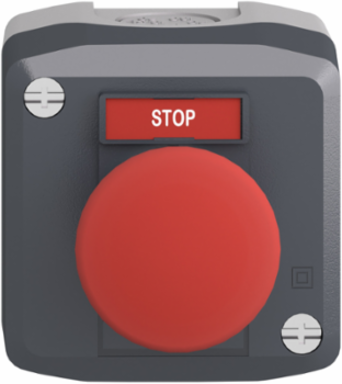

    1 mushroom head Ø 40 mm push-button, red 1 NC STOP
    Device Short Name
    XALD
    Marking Location
    marking on legend holder
    Mechanical Durability
    5000000 cycles
    Operating Travel
    1.5 mm NC changing electrical state)4.3 mm total travel)
    Operators Description
    red ''STOP'' 1 NC
    Positive Opening
    with IEC 60947-5-1 appendix K
    Product Destination
    for XB5 Ø 22 mm control and signalling units
    Protective Treatment
    TH
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Shock Resistance
    10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    1 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Ac Control Voltage 60 Hz
    110-230 V
    Number Of Contacts As Normally Closed Contact
    1
    Color Of Cover
    dark greydark grey RAL 7016)
    Pep Code
    ENVPEP2506022EN
    Pep Verification Date
    2025-06-30
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Short-circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Number Of Mushroom-shaped Push-buttons
    1
    Package Weight(Lbs)
    169.0 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
    Certificate AgencyCSA, UL Listed
    Carbon Footprint Of The Distribution Phase [A4]0.11935141543828384, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0007034684058583574, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.004585392125597635
    Local Publishable Date2026-03-26
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2506022EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard

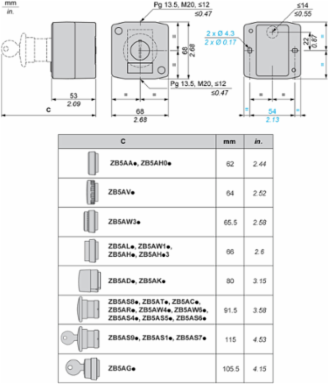

    Cable Entry1 knock-out for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    Contact Operationslow-break
    Control Station Applicationstop function
    Dc Control Voltage24-24 V
    Housing Materialplastic
    Materialpolycarbonate
    Operating Force3.5 N NC changing electrical state
    Operator Profile1 mushroom head push-button
    Overvoltage Categoryclass II conforming to IEC 60536
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typecomplete control station
    Range Of ProductHarmony XALD
    ReturnabilityYes
    Software Versionv6.3.0.1-4
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Vibration Resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    Ac Control Voltage 50 Hz110-230 V
    Number Of Command Positions1
    Color Of Base Of Enclosurelight grey RAL 7035)
    Housing Colorgrey
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
    Recyclability Potential In %18
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Emergency Power Off (Epo)no
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536509035

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP69, IP69K, IP66/IP69/IP69K
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    1.3631448296567215
    Environmental Disclosure
    ENVPEP2506022EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2506022EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of Protection/13, NEMA 13, NEMA 4X
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2506022EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2025-06-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    complete control station
    Range Of ProductHarmony XALD

    ETIM

    ETIM 8
    EC000225
    ETIM 9EC000225

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
