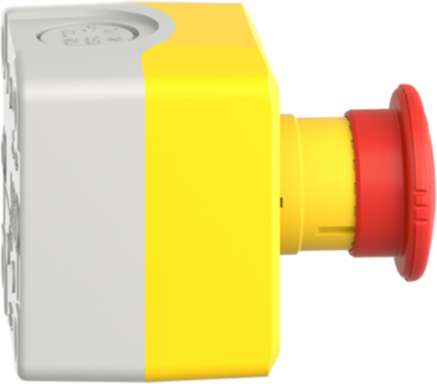

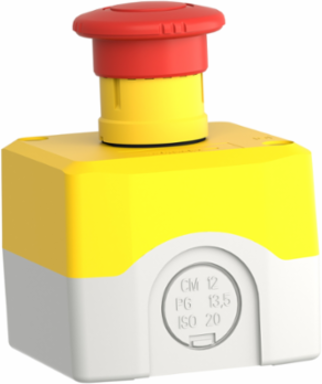

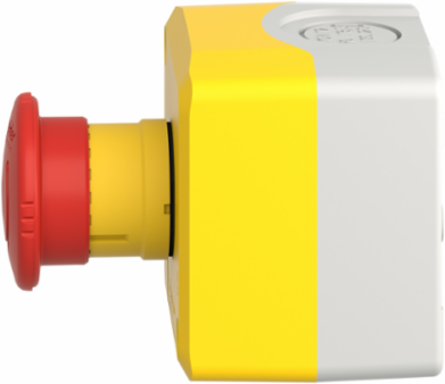

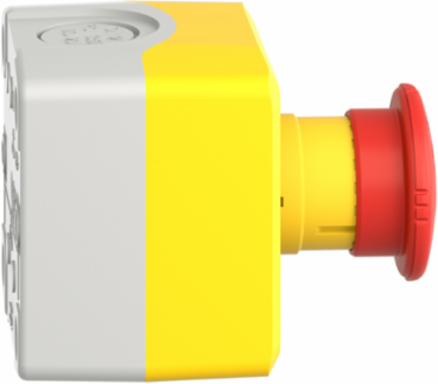

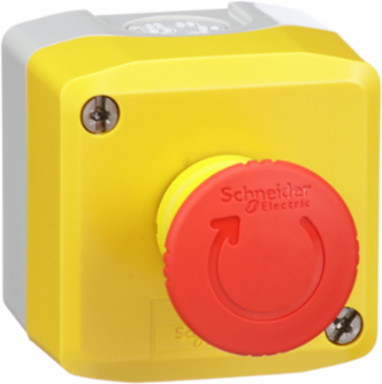

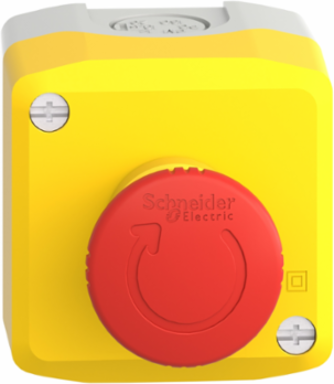

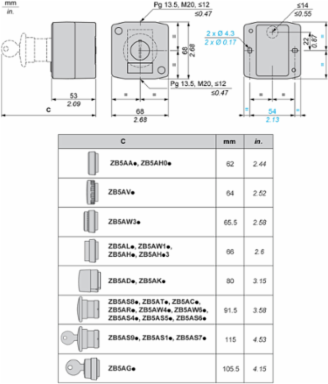

Schneider Electric XALK178EH7 Harmony Control Station, Yellow, 40mm Mushroom Push-Button, IP66
- MPN: XALK178EH7
- PPN: SCH-XALK178EH7
CAD
$205.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

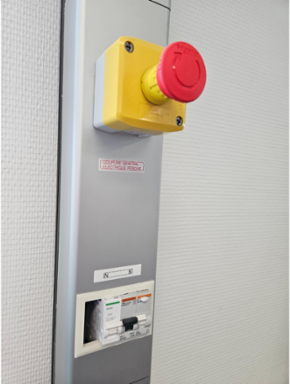

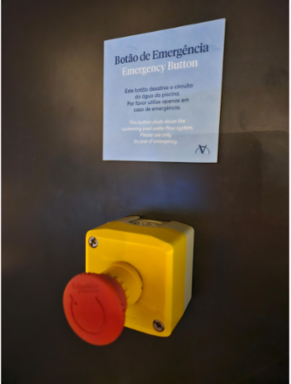

This Harmony XALK yellow control station for emergency stop function is ideal for your complete control station. It operates with turn to release mechanism and uses screw-clamp terminals. This control station with mushroom head push button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, United States |
|---|
Physical Attributes
| Color Of Base Of Enclosure | light grey RAL 7035) |
|---|---|
| Housing Color | yellow |
| Color Of Cover | yellowyellow RAL 1021) |
|---|
Important Information Attributes

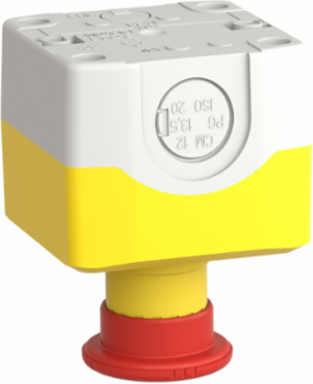

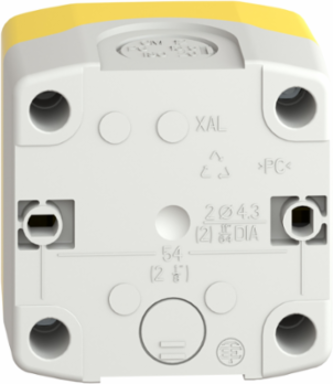

| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Cable Entry | 1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0366325426 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.2626794819 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Operation | slow-break |
| Control Station Composition | 1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC unmarked |
| Device Short Name | XALK |
| Material | polycarbonate |
| Operating Force | 44 N NC + NO changing electrical state |
| Operator Profile | 1 mushroom head push-button |
| Overvoltage Category | class II conforming to IEC 60536 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | complete control station |
| Range Of Product | Harmony XALK |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Ac Control Voltage 60 Hz | 120-600 V |
| Number Of Contacts As Normally Closed Contact | 1 |
| Color Of Base Of Enclosure | light grey RAL 7035) |
| Housing Color | yellow |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use. |
| Functional-unit Unit | unité (unit) |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| Recyclability Potential In % | 18 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Emergency Power Off (Epo) | no |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Control Station Application | emergency stop function, emergency switching off function |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4 |
| Certificate Agency | CSA, UL Listed |
| Carbon Footprint Of The Distribution Phase [A4] | 0.025030893, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0011702419, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.1218928 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2506022EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | XALK |
| Contacts Material | silver alloy (Ag/Ni) |
| Dc Control Voltage | 125-600 V |
| Housing Material | plastic |
| Mechanical Durability | 300000 cycles |
| Operating Travel | 1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel) |
| Operators Description | red unmarked 1 NO + 1 NC |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Protective Treatment | TH |
| Reset | turn to release |
| Returnability | Yes |
| Software Version | EIME v5.8.1 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Ac Control Voltage 50 Hz | 120-600 V |
| Number Of Command Positions | 1 |
| Number Of Contacts As Normally Open Contact | 1 |
| Color Of Cover | yellowyellow RAL 1021) |
| Pep Code | ENVPEP2506022EN |
| Pep Verification Date | 2018-09-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Short-circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Number Of Mushroom-shaped Push-buttons | 1 |
| Package Weight(Lbs) | 171.000 g |
| Warranty (In Months) | 18 |
