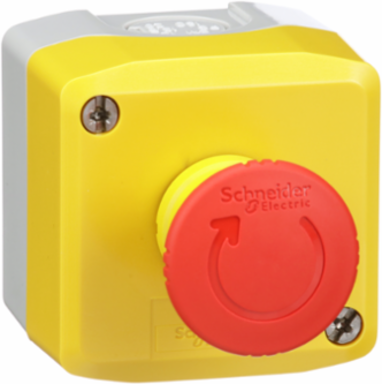

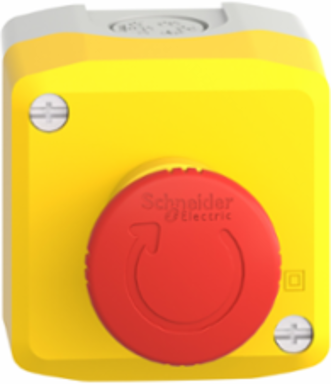

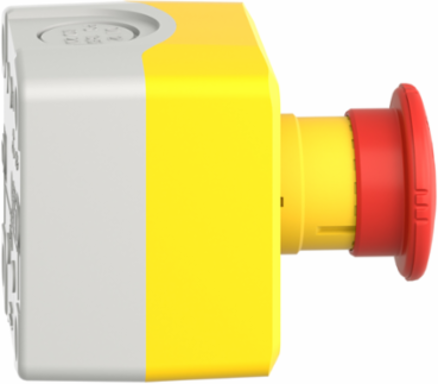

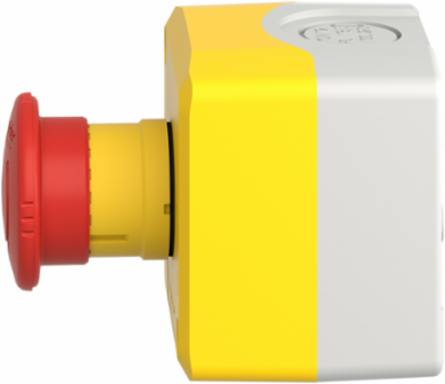

Schneider Electric XALK178GH7 Harmony Emergency Stop Control Station, Yellow, 40mm Mushroom Button, IP66, 1NO + 2NC

  • MPN: XALK178GH7
  • PPN: SCH-XALK178GH7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $222.11

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XALK yellow control station for emergency stop function is ideal for your complete control station. It operates with turn to release mechanism and uses screw-clamp terminals. This control station with mushroom head push button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

    Features

    • This complete control station comes pre-equipped with a 1NO (Normally Open) and 2NC (Normally Closed) contact configuration. The dual NC contacts allow you to wire redundant safety loops back to your safety relay or PLC.
    • Built from heavy-duty polycarbonate, the station boasts NEMA 4X/13 and IP66/IP67/IP69K ratings, making it completely dust-tight and waterproof. It can withstand high-pressure washdowns up to 7,000,000 Pa at 55°C, ensuring total reliability on food processing lines, conveyor systems, and chemical-heavy manufacturing floors.
    • The 40mm red mushroom head features a secure trigger-latching mechanism with a "turn-to-release" reset profile. This mechanical latching guarantees the emergency stop remains locked in the open-circuit state until intentionally twisted, preventing accidental machine restarts and safeguarding maintenance personnel.

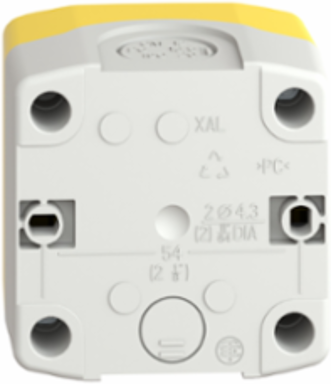

    • Designed for rapid installation, the housing includes standard knockouts for a Pg 13.5 cable gland, alongside a 14mm base cutout. The internal contact blocks utilize heavy-duty screw clamp terminals compatible with standard Philips, Pozidriv, or flat-head screwdrivers, allowing electricians to secure wiring quickly without specialized tooling.
    • The entire Harmony XALK assembly is fully UL 508 listed and CSA C22.2 certified for high-voltage industrial machinery control. It incorporates positive opening operations conforming to IEC 60947-5-1 Appendix K, guaranteeing that the NC contacts are physically forced open upon actuation to reliably break the power loop.

    Documentation & Downloads

    Specifications

    Key Specifications

    Control Station Application
    emergency stop function || emergency switching off function
    Reset
    turn to release
    Colour Of Base Of Enclosure
    light grey RAL 7035)
    Operators Description
    red unmarked 1 NO + 2 NC
    Material
    polycarbonate
    Colour Of Cover
    yellow RAL 1021)
    Device Short Name
    XALK
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Range Of ProductHarmony XALK
    Control Station Composition1 mushroom head Ø 40 mm push-button, red 1 NO + 2 NC unmarked
    Product Or Component Typecomplete control station
    Operator Profile1 mushroom head push-button
    Contact Operationslow-break

    Complementary

    Operating Force
    44 N NC + NO changing electrical state
    Operating Travel
    1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    Positive Opening
    with EN/IEC 60947-5-1 appendix K
    Cable Entry
    1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
    [Uimp] Rated Impulse Withstand Voltage
    6 kV EN/IEC 60947-1
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    [Ui] Rated Insulation Voltage
    600 V 3)EN/IEC 60947-1
    Mechanical Durability
    300000 cycles
    Tightening Torque
    0.8-1.2 N.m EN/IEC 60947-1
    Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
    Contacts Materialsilver alloy (Ag/Ni)
    [Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
    Net Weight0.194 kg
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
    Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
    Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

    Environment

    Product Certifications
    CSA || UL listed
    Ambient Air Temperature For Operation
    -40-70 °C
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529 || IP67 || IP69 || IP69K
    Overvoltage Category
    class II IEC 60536
    Protective Treatment
    TH
    Ik Degree Of ProtectionIK03 conforming to EN 50102
    StandardsIEC 60364-5-53 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/ISO 13850 || JIS C 4520 || EN/IEC 60947-1 || UL 508 || EN/IEC 60204-1
    Vibration Resistance5 gn 12-500 Hz)IEC 60068-2-6
    Ambient Air Temperature For Storage-40-70 °C
    Nema Degree Of ProtectionNEMA 13 || NEMA 4X

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1806010EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1806010EN
