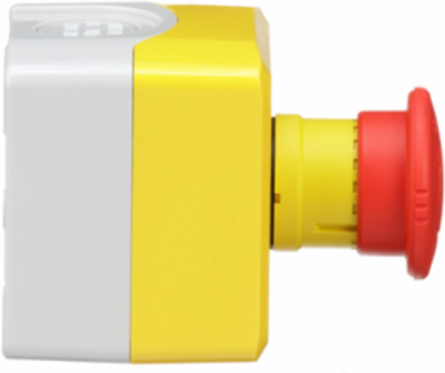

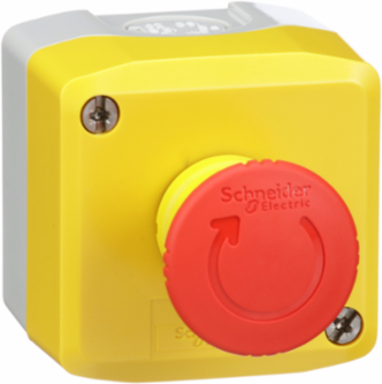

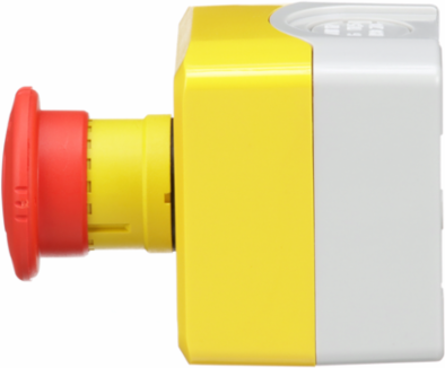

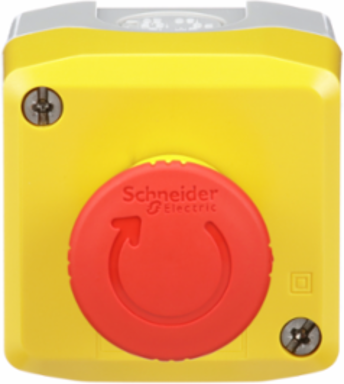

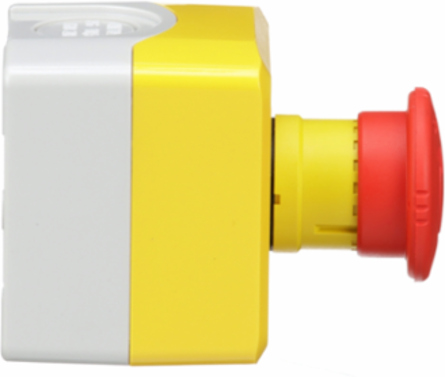

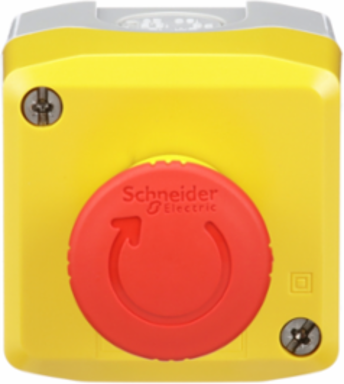

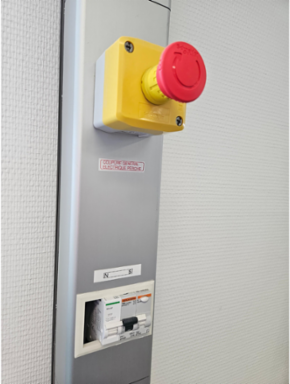

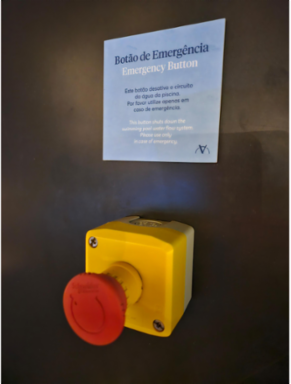

Schneider Electric XALK178FH7 Harmony Yellow Control Station, 1 Red Mushroom Head, IP66, UL/CSA Certified
- MPN: XALK178FH7
- PPN: SCH-XALK178FH7
CAD
$205.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XALK yellow control station for emergency stop function is ideal for your complete control station. It operates with turn to release mechanism and uses screw-clamp terminals. This control station with mushroom head push button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Features
- This complete control station comes pre-configured with 2 Normally Closed (2 NC) slow-break contacts, eliminating the hassle of sourcing separate parts. The dual-contact design ensures a reliable, redundant pathway to immediately drop power to your control circuits the instant the mechanism is triggered.
- Engineered with an intuitive turn-to-release mechanism, the red mushroom head securely latches into place when pressed, ensuring the machinery remains locked out until an operator manually twists the button to reset it. This explicit mechanical action prevents accidental restarts, satisfying strict safety management protocols on the plant floor.
- Built from high-grade polycarbonate, this enclosure boasts heavy-duty IP66, IP67, IP69, and IP69K ratings alongside NEMA 4X and 13 protection levels. It is purpose-built to survive high-pressure washdowns up to 10,153 psi at 131 F (55 C), making it completely immune to harsh chemical cleanings, dust ingress, and corrosive industrial processing conditions.
- Designed as a core part of the Harmony XALK modular framework, the station offers seamless physical compatibility with all standard 22 mm plastic push buttons, switches, and pilot lights from the Harmony XB5 range.
- Fully certified to UL 508, CSA C22.2 No 14, and EN/ISO 13850 regulations, this unit features a distinct positive opening mechanism conforming to IEC 60947-5-1 Appendix K. The unmistakable high-visibility yellow lid (RAL 1021) and large 40mm unmarked red mushroom cap guarantee effortless compliance for mandatory emergency switching off and e-stop safety systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Physical Attributes
- Color Of Base Of Enclosure
- light grey RAL 7035)
- Housing Color
- yellow
Color Of Coveryellowyellow RAL 1021)
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL

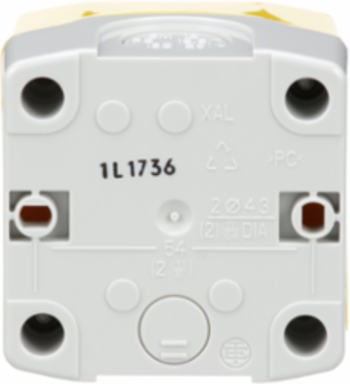

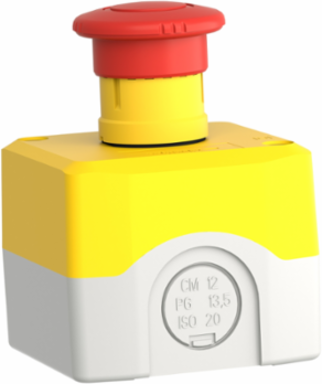

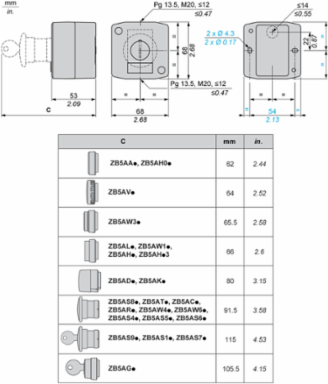

- Cable Entry

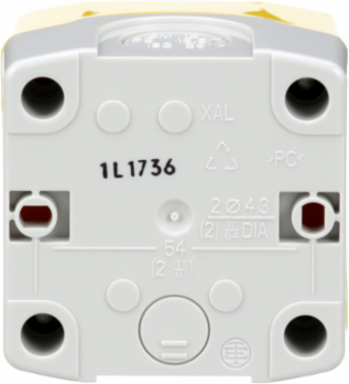

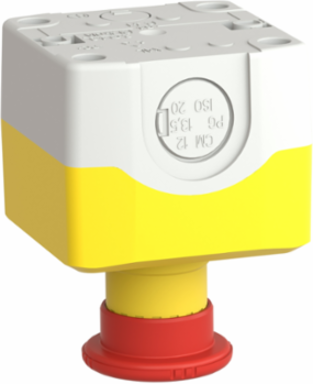

- 1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0324783367
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.1194890252
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- slow-break
- Control Station Composition
- 1 mushroom head Ø 40 mm push-button, red 2 NC unmarked
- Device Short Name
- XALK
- Material
- polycarbonate
- Operating Force
- 44 N
- Operator Profile
- 1 mushroom head push-button
- Overvoltage Category
- class II conforming to IEC 60536
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- complete control station
- Range Of Product
- Harmony XALK
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ac Control Voltage 60 Hz
- 120-600 V
- Number Of Contacts As Normally Closed Contact
- 2
- Color Of Cover
- yellowyellow RAL 1021)
- Pep Code
- ENVPEP2506022EN
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Number Of Mushroom-shaped Push-buttons
- 1
- Package Weight(Lbs)
- 172.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Control Station Applicationemergency switching off function, emergency stop function
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The Distribution Phase [A4]0.0221923381, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.001037534, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.1218928
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506022EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeXALK
Contacts Materialsilver alloy (Ag/Ni)
Dc Control Voltage125-600 V
Housing Materialplastic
Mechanical Durability300000 cycles
Operating Travel1.5 mm NC changing electrical state)4.3 mm total travel)
Operators Descriptionred unmarked 2 NC
Positive Openingwith IEC 60947-5-1 appendix K
Product Destinationfor XB5 Ø 22 mm control and signalling units
Protective TreatmentTH
Resetturn to release
ReturnabilityYes
Software VersionEIME v5.8.1
Tightening Torque0.8-1.2 N.m IEC 60947-1
Vibration Resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Ac Control Voltage 50 Hz120-600 V
Number Of Command Positions1
Color Of Base Of Enclosurelight grey RAL 7035)
Housing Coloryellow
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %18
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Emergency Power Off (Epo)no
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.2970900341
- Environmental Disclosure
- ENVPEP2506022EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506022EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of Protection/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2506022EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2018-09-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- complete control station
Range Of ProductHarmony XALK
ETIM
- ETIM 8
- EC000225
ETIM 9EC000225
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
