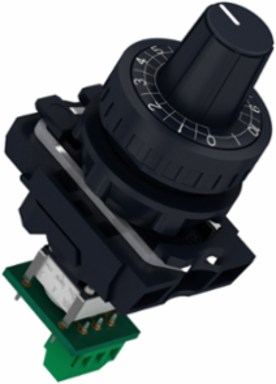

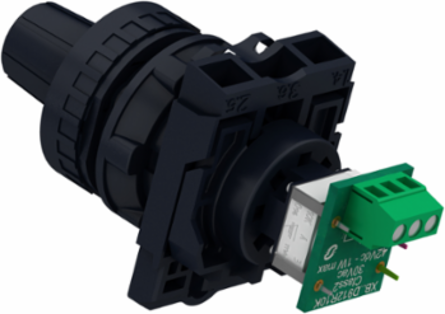

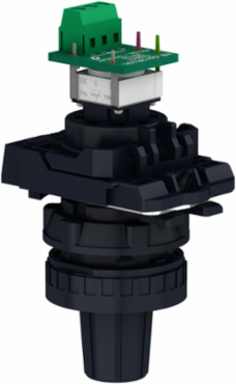

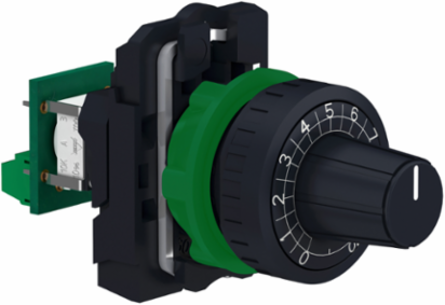

Schneider Electric XB5AD912R100K Harmony XB5 Complete Potentiometer 22mm 100KΩ IP66
- MPN: XB5AD912R100K
- PPN: SCH-XB5AD912R100K
CAD
$70.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB5, 22mm diameter potentiometer has a resistance of 100kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Head Type
- standard
- Device Short Name
- XB5
Product Or Component Typepotentiometer
Device Presentationcomplete product
Complementary
- Product Certifications
- CSA || BV || UL listed
- Ik Degree Of Protection
- IK03 conforming to IEC 50102
- Ambient Air Temperature For Operation
- -40-70 °C
- Precision Of Internal Conversion Resistor
- +-10%
- Mounting Diameter
- 22 mm
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Net Weight
- 0.048 kg
- Potentiometer Characteristic
- linear
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- dark grey plastic
- Operator Profile
- knurled knob, with white)
- Electrical Shock Protection Class
- class II IEC 60536

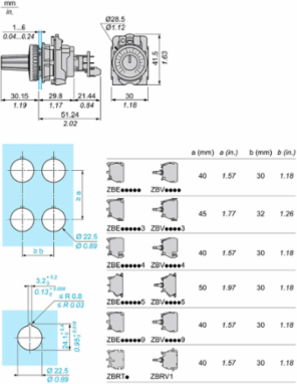

- Cad Overall Width
- 30 mm
- Protective Treatment
- TH
Rated Power In W1 W 70 °C
Ohmic Value100000 Ohm
StandardsIEC 60947-1 || UL 508 || CSA C22.2 No 14
Main Grouppotentiometer
Colour Of Markingwhite
Shape Of Signaling Unit Headround
Materialcermet
Cad Overall Height42 mm
Ip Degree Of ProtectionIP66 IEC 60529
[Us] Rated Supply Voltage<= 30 V AC || <= 42 V DC
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Mechanical Durability50000 cycles
Product CompatibilityØ 6 mm shaft
Cad Overall Depth82 mm
Group Of Productpotentiometer knurled knob
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
