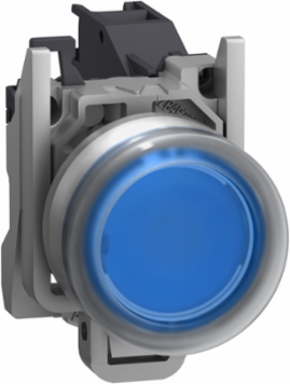

Schneider Electric XB4BP681GEX Complete push button, Harmony XB4 - ATEX D, blue projecting with boot, metal, 22mm, spring return, 1NO, for insertion of legend
- MPN: XB4BP681GEX
- PPN: SCH-XB4BP681GEX
CAD
$344.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This blue pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pushbutton with booted clear silicon push for insertion of legend provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth72 mm
Physical Attributes
- Embedding Depth
- 58 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL

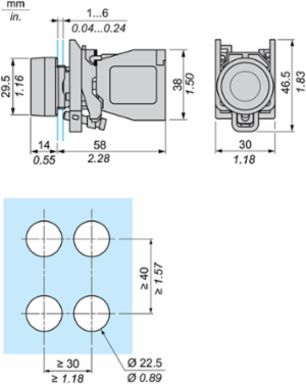

- Fixing Center
- >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0171310083, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0262745907, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.0034791549
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308035EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 19 %
- Compatibility Code
- XB4
- Contacts Type And Composition
- 1 NO
- Dust Zone
- zone 21 - 22
- Gas Zone
- zone 1 - 2
- Mounting Diameter
- 22 mm
- Operating Travel
- 1.657 mm engagement point)4.622 mm changing state point)4.452 mm total travel)
- Operator Profile
- blue projecting
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- spring return
- Pep Code
- ENVPEP2308035_V1-EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Height Nominal
- 30 mm
- Certificate Agency
- INERIS 04ATEX9004U
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- Package Weight(Lbs)
- 131.0 g
- Take-back
- No
- Customs Code
- 8536509035
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
MarkingEx db eb IIC Gb, II 2 GD, Ex tb IIIC Db
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1657002372
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.9285304864
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content18 %
Bezel Materialchromium plated metal
Contact Operationslow-break
Device Short NameXB4
Fixing Collar Materialzamak
Mechanical Durability5000000 cycles
Operating Force3.962 N
Operator Additional Informationbooted (clear silicon) for insertion of legend
Positive Openingwithout
Product Or Component Typecomplete push-button
Protective TreatmentTH
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal46.2 mm
[Ie] Rated Operational Current1.9 A 380 V, AC, A600 IEC 60947-5-13 A 240 V, AC, A600 IEC 60947-5-16 A 120 V, AC, A600 IEC 60947-5-10.27 A 250 V, DC, Q300 IEC 60947-5-10.55 A 125 V, DC, Q300 IEC 60947-5-12.87 A 24 V, DC, Q300 IEC 60947-5-1
[Ui] Rated Insulation Voltage415 V
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-75 °C, -20-75 °C
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308035EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level18 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.1411154776
Environmental DisclosureENVPEP2308035_V1-EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308035_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
