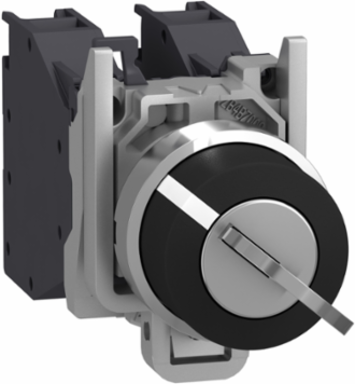

Schneider Electric XB4BG21GEX Harmony XB4 Complete Selector Switch, 22 mm, Key 455, IP66
- MPN: XB4BG21GEX
- PPN: SCH-XB4BG21GEX
CAD
$269.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This key selector switch comes with key number 455 and key withdrawal in left-hand position. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It has 2 operating positions and operates with a stay-put mechanism. It has 1 NO contact with slow-break operation. This metal key selector switch comes with chromium plated metal bezel. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth110 mm
Physical Attributes
- Embedding Depth
- 58 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL

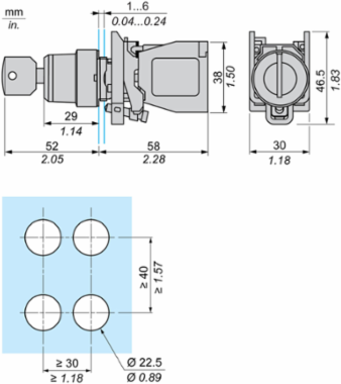

- Fixing Center
- >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0231462513, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.022252696, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.056961
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308006EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- XB4
- Contacts Type And Composition
- 1 NO
- Device Short Name
- XB4
- Fixing Collar Material
- zamak
- Key Number
- 455
- Mechanical Durability
- 5000000 cycles
- Operator Position Information
- 2 positions 90°
- Positive Opening
- without
- Product Or Component Type
- complete selector switch
- Protective Treatment
- TH
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Key selector switch has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Width Nominal
- 46.2 mm
- [Ie] Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-13 A 240 V, AC, A600 IEC 60947-5-16 A 120 V, AC, A600 IEC 60947-5-10.27 A 250 V, DC, Q300 IEC 60947-5-10.55 A 125 V, DC, Q300 IEC 60947-5-12.87 A 24 V, DC, Q300 IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 415 V
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1.3234
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1.3234
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
MarkingII 2 GD, Ex tb IIIC Db, Ex db eb IIC Gb
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1087843394
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.1715967777
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialchromium plated metal
Contact Operationslow-break
Contacts Usagestandard contacts
Dust Zonezone 21 - 22
Gas Zonezone 1 - 2
Key Withdrawal Positionleft-hand
Mounting Diameter22 mm
Operator Profilekey switch
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorstay put
Pep CodeENVPEP2308006EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Height Nominal30 mm
Certificate AgencyINERIS 04ATEX9004U
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Package Weight(Lbs)175.000 g
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.3234
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.5778
Customs Code8536509025
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-75 °C, -20-75 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.3827410644
- Environmental Disclosure
- ENVPEP2308006EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2308006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308006EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- complete selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
