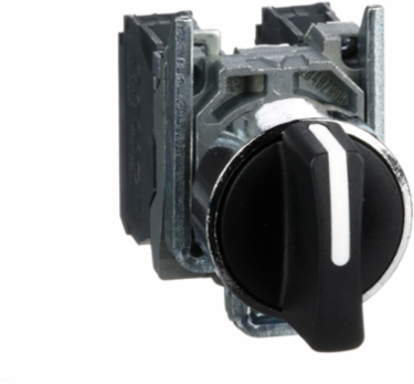

Schneider Electric XB4BD33 Harmony XB4 Selector Switch, 22mm, 3 Positions, IP69K, Stay Put, 2NO

  • MPN: XB4BD33
  • PPN: SCH-XB4BD33
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $65.60

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony XB4 Selector Switch, 22mm, 3 Positions, IP69K, Stay Put, 2NO

    Features

    • Engineered with a "stay-put" standard black handle and three distinct positions (+/- 45 ), this selector switch allows operators to confidently toggle between complex machine states, such as Hand-Off-Auto (HOA) controls. The maintained mechanical action ensures your motor control centers or automated conveyors remain securely locked in their designated operating mode without the need for constant manual pressure, improving overall workflow efficiency.
    • Designed to seamlessly fit standard industry 22mm panel cutouts, the Schneider Harmony XB4 series features a rugged, chromium-plated metal construction built to absorb severe mechanical impacts. This heavy-duty industrial design completely eliminates the cracking and stripping common with standard plastic alternatives, guaranteeing long-lasting structural integrity on high-vibration manufacturing equipment and heavy machinery.

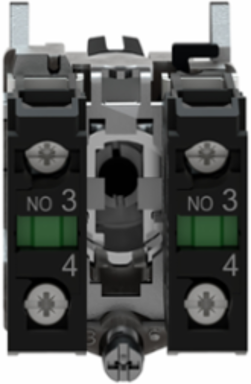

    • Delivered fully pre-configured with two highly conductive, slow-break Normally Open (NO) contact blocks, this unit simplifies your control wiring right out of the box. The modular, snap-on contact assembly utilizes vibration-resistant screw clamp terminals to secure bare wires or ferrules, preventing loose connections and signal dropouts within your critical PLC systems and automation panels.
    • Boasting an exceptional IP66, IP67, and IP69K environmental rating, this control switch provides absolute defense against microscopic dust ingress and extreme high-temperature, high-pressure water jets. This factory-tested sealing makes it the ultimate code-compliant solution for food and beverage processing facilities, pharmaceutical plants, or outdoor enclosures where standard electrical components would quickly fail from moisture corrosion or internal short circuits.
