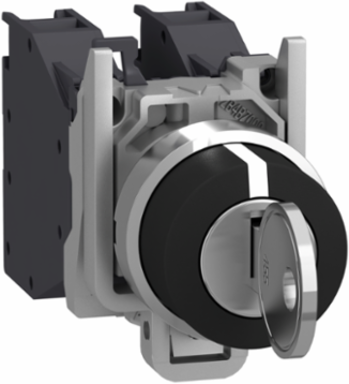

Schneider Electric XB4BG33GEX Complete Selector Switch, Harmony XB4, 3 Positions, IP66
- MPN: XB4BG33GEX
- PPN: SCH-XB4BG33GEX
CAD
$308.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This key selector switch comes with key number 455 and key withdrawal in center position. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It has 3 operating positions and operates with a stay-put mechanism. It has 2 NO contact with slow-break operation. This metal key selector switch comes with chromium plated metal bezel. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Documentation & Downloads
Specifications
Key Specifications
- Key Number
- 455
- Dust Zone
- zone 21 - 22
- Type Of Operator
- stay put
- Fixing Collar Material
- zamak
- Contacts Type And Composition
- 2 NO
- Bezel Material
- chromium plated metal
- Device Short Name
- XB4
Range Of ProductHarmony XB4
Mounting Diameter22 mm
Product Or Component Typecomplete selector switch
Gas Zonezone 1 - 2
Sale Per Indivisible Quantity1
Operator Profilekey switch
Complementary
- Contacts Usage
- standard contacts
- Embedding Depth
- 58 mm
- Positive Opening
- without
- Shape Of Signaling Unit Head
- round
- Net Weight
- 0.177 kg
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- [Ie] Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- Operator Position Information
- 3 positions +/- 45°
- Width
- 46.2 mm
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
Height30 mm
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
MarkingEx db eb IIC Gb || II 2 GD || Ex tb IIIC Db
Key Withdrawal Positioncenter
[Ui] Rated Insulation Voltage415 V
Contact Operationslow-break
Mechanical Durability5000000 cycles
Depth110 mm
Device Mountingfixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Environment
- Product Certifications
- INERIS 04ATEX9004U
- Standards
- IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-20-75 °C
Ip Degree Of ProtectionIP66 IEC 60529
Protective TreatmentTH
