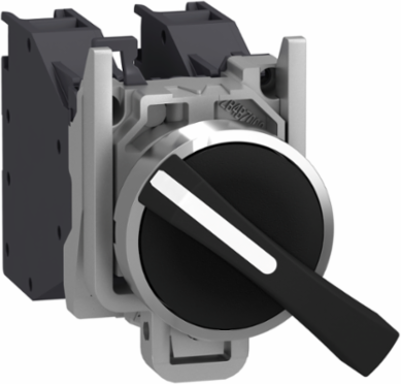

Schneider Electric XB4BJ21GEX Harmony XB4 Selector Switch, IP66, 22 mm, 2 Positions, Stay Put
- MPN: XB4BJ21GEX
- PPN: SCH-XB4BJ21GEX
CAD
$110.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete selector switch comes with a black long handle. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It has 2 operating positions and operates with a stay-put mechanism. It has 1 NO contact with slow-break operation. This metal key selector switch comes with chromium plated metal bezel. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4
- Mounting Diameter
- 22 mm
- Product Or Component Type
- complete selector switch
- Gas Zone
- zone 1 - 2
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- black long handle
Dust Zonezone 21 - 22
Type Of Operatorstay put
Fixing Collar Materialzamak
Contacts Type And Composition1 NO
Bezel Materialchromium plated metal
Device Short NameXB4
Complementary
- Contacts Usage
- standard contacts
- Embedding Depth
- 58 mm
- Positive Opening
- without
- Shape Of Signaling Unit Head
- round
- Net Weight
- 0.101 kg
- [Ui] Rated Insulation Voltage
- 415 V
- Contact Operation
- slow-break
- Mechanical Durability
- 5000000 cycles
- Depth
- 85 mm
- Device Mounting
- fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
Height30 mm
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
MarkingII 2 GD || Ex db eb IIC Gb || Ex tb IIIC Db
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
[Ie] Rated Operational Current1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Operator Position Information2 positions 90°
Width46.2 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Environment
- Product Certifications
- INERIS 04ATEX9004U
- Standards
- IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-20-75 °C
Ip Degree Of ProtectionIP66 IEC 60529
Protective TreatmentTH
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
