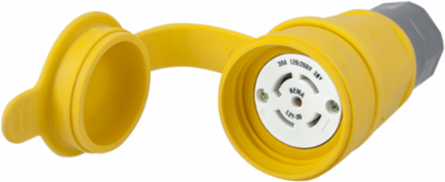

Hubbell Wiring Device-Kellems HBL29W81 Watertight Twist-Lock Connector, 30A, 120/208V AC, 4-Pole, Yellow
- MPN: HBL29W81
- UPC: 783585131924
- PPN: HBL-HBL29W81
- UNSPSC: 39121421
CAD
$200.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Connector, 30A, 3 Phase WYE 120/208V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L21-30R, Yellow
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 4-Pole
- Operating Temperature Range
- -40°C to +60°C
- Cord Diameter
- 0.375-1.125 in
- Width
- 2.77 in
- Size
- 2.77 in x 2.77 in x 5.67 in
- NEMA Rating
- L21-30R
- Compliance
- UL Listed, CSA Certified, IP69K
- Country of Origin
- PR
Voltage3-Phase Y 120/208 VAC
Number of Wires5-Wire
Temperature Rise30°C max
Length2.77 in
Height5.67 in
MaterialThermoplastic Elastomer
StandardMeets NEMA WD-1, WD-6 And ANSI Standards
ColorYellow
