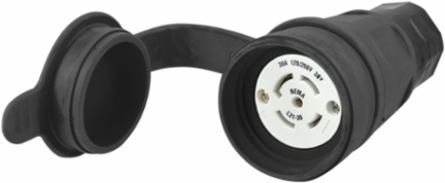

Hubbell Wiring Device-Kellems HBL29W81BK Watertight Twist-Lock Connector, 30A, 4-Pole, 5-Wire, 120/208V AC
- MPN: HBL29W81BK
- UPC: 783585131931
- PPN: HBL-HBL29W81BK
- UNSPSC: 39121421
CAD
$218.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Twist-Lock® Connector, 30A, 3 Phase WYE 120/208V AC, 4-Pole, 5 Wire, Thermoplastic elastomer, NEMA L21
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.77 in x 2.77 in x 5.67 in
- Industry Standard(s)
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Performance
- Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
- Color
- Black
- Number of Poles
- 4-Pole
- Standard
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Voltage Rating
- 3-Phase Y 120/208 VAC
- Width
- 2.77 in
- General Literature Asset 1 Display Text
- Watertight Wiring Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Number Of Poles
- 4-Pole
- Wire Size
- Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
- Description - Invoice
- CONN,W/TIGHT,3PY 30A 120/208V,L21-30R,BK
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Cord Diameter
- 0.375-1.125 in
- BOX SIZE
- 9.125x17.125x9.815 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585131931
- NAICS Code
- 335931A102
Current / Amperage Rating30 A
Height5.67 in
Length2.77 in
Amperage Rating30 A
NEMA RatingL21-30R
Size2.77 in x 2.77 in x 5.67 in
TypeConnector Body
Voltage Rating Description3-Phase Y 120/208 VAC
Engineering Drawing 1 Display TextHBL29W81BK AutoCAD Drawing
General Literature Asset 2 Display TextPulp & Paper Solutions
Nema RatingL21-30R
Number Of Wires5-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A116
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
