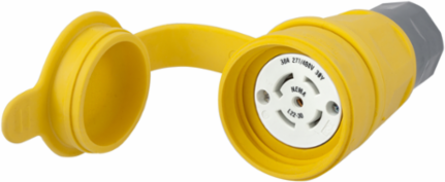

Hubbell Wiring Device-Kellems HBL29W82 Watertight Twist-Lock Connector 30A 3-Phase Y 277/480V AC 4-Pole 5-Wire
- MPN: HBL29W82
- UPC: 783585131948
- PPN: HBL-HBL29W82
- UNSPSC: 39121421
CAD
$199.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Twist-Lock® Connector, 30A, 3 Phase WYE 277/480V AC, 4-Pole, 5 Wire, Thermoplastic elastomer, NEMA L22
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Pole Count
- 4-Pole
- NEMA Rating
- L22-30R
- Length
- 2.77 in
- Height
- 5.67 in
- Material
- Thermoplastic Elastomer
- Temperature Range
- -40b0C to +60b0C continuous
- Moisture Resistance
- UL Listed 4, 4X, 6, 6P, 12
- Country of Origin
- PR
- Industry Standard(s)
- Meets NEMA WD-1, WD-6 and ANSI Standards
Voltage277/480 V AC, 3-Phase WYE
Wire Count5-Wire
Cord Diameter0.375-1.125 in
Width2.77 in
Dimensions2.77 in x 2.77 in x 5.67 in
Dielectric Voltage3500 V AC
Temperature Rise30b0C max per UL498 at rated current
ComplianceUL Listed, CSA Certified, Meets NEMA WD-1, WD-6, ANSI
ColorYellow
