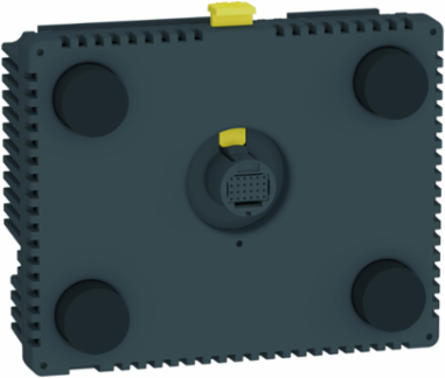

Schneider Electric HMISAC Harmony SCU Rear Module Controller, 16 Digital Inputs, 10 Outputs, IP65
- MPN: HMISAC
- PPN: SCH-HMISAC
CAD
$834.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

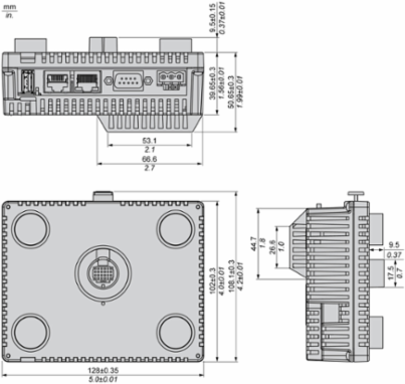

This rear module controller offers 16 digital inputs and 10 outputs. It is a controller with a supply voltage of 24V DC. It features CPU RISC processor, 128MB flash NAND, 128kB FRAM internal data storage and 128MB application run DRAM. It is an equipped with 1 serial link, 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type A and DE-09 D-sub CANopen master bus connections. It is an IP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529 and NEMA 4X front panel rated product. The enclosure is made of PC/PBT. Its dimensions are 128mm (width) x 102mm (depth) x 50.65mm (height). It weighs 0.359kg. This product is certified by GOST, C-Tick, KCC and CULus. It meets ANSI/ISA 12-12-01, UL 508, IEC 61000-6-2 and CSA C22.2 No 213 Class I Division 2 standards. It can be installed into 1mm to 6mm thick panel. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, Indonesia, United States |
|---|
| Depth | 102 mm |
|---|
Complementary Attributes
| Integrated Connection Type | 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s), 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type ACANopen master bus - SUB-D 9 |
|---|---|
| Maximum Cable Distance Between Devices | shielded cable <10 m fast inputshielded cable <100 m digital inputunshielded cable <50 m digital input |
| Maximum Pressure | 800...1114 hPa |
| Maximum Input Frequency | 100 kHz fast input (encoder mode) A/B100 kHz fast input single phase, 100 kHz fast input pulse/direction |
|---|---|
| Maximum Output Frequency | 100 kHz fast output (PTO mode)1 kHz fast output (PWM mode) |
Important Information Attributes

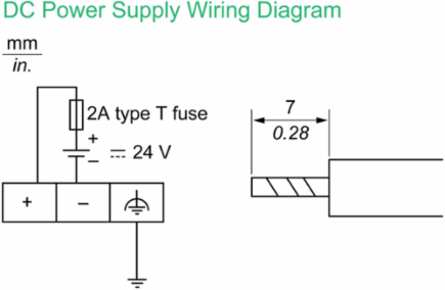

| Persona Type Ids | EU, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Configurable Filtering Time | 0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop) |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011 |
| Memory Description | flash NAND, 128 MB, internal data storage FRAM, 128 kBapplication run DRAM, 128 MB |
| Vibration Resistance | +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-61 gn 9-150 Hz) IEC 60068-2-6 |
| Input/Output Number | 2 fast input FI0...FI1, 14 digital input DI0...DI132 fast output FQ0...FQ1, 8 digital output DQ0...DQ7 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2123119708749846, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 48 kg CO2 eq., 47.72489201530298 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 2 |
| Function Option | Standard |
| Connection Pitch | 3.5 mm |
| Environmental Characteristic | corrosive gas free |
| Overvoltage Protection | with |
| Inrush Current | 30 A |
| Isolation Between Channels And Internal Logic | 500 V DC |
| Marking | CE |
| Number Of Pages | limited by internal memory capacity |
| Power Consumption In W | 15 W |
| Processor Name | CPU RISC |
| Product Or Component Type | controller |
| Realtime Clock | built-in |
| Sensor Power Supply | 15-28.8 V DC >= 15 V >= 5 mA = 15 V >= 2.5 mA <= 5 V <= 1 mA |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide 5.7" TFT Smart Display during 10 years and maximum use rate at 13W, based on below function:& 10 - 5.7 inch Touchscreen panel& 10 - Digital In/Out +Analog In/Out& 10 - Serial comunication interface (RS-232C/485))& 10 - USB2.0 Interface (Type-A, mini-B)& 10 - Ethernet interface& 10 - CANopen master bus& 10,in accordance with the relevant standards:& 10 - FCC Class A& 10 - EN 61131-2& 10 - UL 508& 10 - IEC 61000-6-2& 10 - CSA C22.2 No 213 Class I Division 2& 10 - ANSI/ISA 12-12-01 |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 1314 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 50.65 mm |
| [Us] Rated Supply Voltage | 24 V 20.4-28.8 V)DC |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Downloadable Protocols | Modbus, Modbus TCP/IP, CANopen |
| Insulation Resistance | > 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth, > 10 MOhm between power supply and earth> 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth |
| Shock Resistance | 147 m/s² 11 ms on DIN rail)IEC 60068-2-27, 294 m/s² 6 ms on panel mounting)IEC 60068-2-27 |
| Certificate Agency | GOST, C-tick, KCC, cULus 508, cULus CSA 22-2 No 142, cUL 1604 Class 1 Division 2 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.05874787115883006, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.2 kg CO2 eq., 0.15596097741577195 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 616 kg CO2 eq., 615.6461538461538 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1405010EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Enclosure Material | PC/PBT |
| Fixing Mode | by 1 nut Ø 22 mm 1...6 mm thick panel |
| Immunity To Microbreaks | 10 ms |
| Isolation Between Channels | none |
| Local Signalling | no indicator |
| Number Of Common Point | 1 fast input (HSC mode)2 digital input |
| Operating System | Harmony |
| Processor Frequency | 333 MHz |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony SCU |
| Returnability | No |
| Software Designation | SoMachine |
| Supply | external source |
| Total Lifecycle Carbon Footprint | 664 kg CO2 eq. |
| Pep Code | ENVPEP1405010EN |
| Pep Verification Date | 2023-11-28 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 7 |
| Width Nominal | 128 mm |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 988.000 g |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -20-60 °C, -20-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 663.7980666809063 |
| Circularity Profile | ENVEOLI1405010EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 IEC 60529 rear panel)IP65 IEC 60529 front panel) |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Storage Altitude | 0-10000 m |
| Pep Verification Date | 2023-11-28 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Operating Altitude | <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m) |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Operation | 0-50 °C |
| Environmental Disclosure | ENVPEP1405010EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Nema Degree Of Protection | NEMA 4X front panel |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-85 % without condensation |
| Pep Code | ENVPEP1405010EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | controller |
|---|
| Range Of Product | Harmony SCU |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|
| ETIM 9 | EC001412 |
|---|
Output Attributes
| Discrete Output Voltage | 24 V DC 19.2...28.8 V)transistor24 V DC 5...30 V)relay, 220 V AC 100...250 V)relay |
|---|---|
| Discrete Output Number | 2 fast output (normal mode) source8 digital output source |
| Discrete Output Current | 2 A 4 A)5 ms opening contact digital output2 A 4 A)2 ms closing contact digital output300 mA2 ms fast output (normal mode)50 mA2 ms fast output (PWM or PTO mode) |
|---|---|
| Maximum Output Frequency | 100 kHz fast output (PTO mode)1 kHz fast output (PWM mode) |
Surge Protection And Filtering Attributes
| Configurable Filtering Time | 0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop) |
|---|
Input Attributes
| Input Impedance | 4.7 kOhm, 2.81 kOhm |
|---|---|
| Discrete Input Current | 7.83 mA fast input5 mA digital |
| Discrete Input Voltage | 24 V DC sink or source (positive/negative) |
| Maximum Input Frequency | 100 kHz fast input (encoder mode) A/B100 kHz fast input single phase, 100 kHz fast input pulse/direction |
|---|---|
| Discrete Input Number | 2 fast input (normal mode) IEC 61131-2 Type 114 digital input IEC 61131-2 Type 1 |
Batteries & Runtime Attributes
| Removable Battery | USER_REPLACEABLEUser replaceable |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
