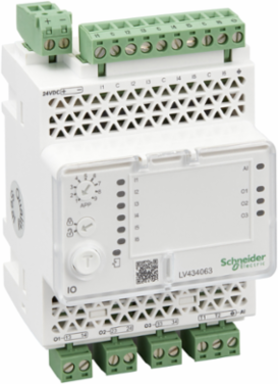

Schneider Electric LV434063 Enerlin'X I/O Module 72mm x 116mm, 6 Digital Inputs, 3 Digital Outputs
- MPN: LV434063
- PPN: SCH-LV434063
CAD
$4006.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, Mexico, United States |
|---|
| Depth | 70.6 mm |
|---|
Communications & Management Attributes
| Communication Network Type | Universal Logic Plug 2 RJ45 connectors |
|---|
Physical Attributes
| Cable Length | 10 m |
|---|
Important Information Attributes
| Persona Type Ids | PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electromagnetic Compatibility | electrostatic discharge immunity test conforming to EN/IEC 61000-4-2, immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3surge immunity test conforming to EN/IEC 61000-4-5 |
| Certificate Agency | FCC, GOST, CE, cULus |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.39198261 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 16 kg CO2 eq., 16.35713776 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | DPIBS |
| Use Carbon Footprint | 20.681 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2411031EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1902 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Compatibility Code | I/O |
| Current Consumption | 165 mA |
| Energy Efficiency Optimized | False |
| Mounting Mode | by clips |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | I/O module |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Time Delay | 0...20 s |
| Vibration Frequency | 5-8.4 Hz |
| Pep Code | ENVPEP2411031EN |
| Pep Verification Date | 2023-12-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; ID |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 1 |
| Width Nominal | 71.7 mm |
| Connections - Terminals | screw terminal block |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 20.653 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 526.89 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 30.749 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 628.06 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 526.89 |
| Customs Code | 8538908180 |
| Persona Type Names | Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.04563376, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.203345111, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 21 kg CO2 eq., 20.681 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Type | by software |
| Device Short Name | I/O |
| Flame Retardance | V0 conforming to UL |
| Mounting Support | 35 mm DIN rail |
| Product Name | Enerlin'X IO |
| Range | Enerlin'X |
| Shock Resistance | 1000 m/s² |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 38 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | The main function of the IFM V2 MODBUS COMMUNICATION INTERFACE is to convert ULP protocol to Modbus serial in order to transmit Breaker Parameters like voltage, Current, Power Factor to supervisor during 10 years. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 50.4576 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 116 mm |
| [Us] Rated Supply Voltage | 24 V DC - 20...10 % |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 271.000 g |
| Warranty (In Months) | 18 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 20.681 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 222.72 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 2.9755 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 101.18 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 101.18 |
| Other Technical Guide Name | ESXP1G003EN |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C, -40-85 °C, -40-85 °C |
| Halogene Performance | Product contains halogen above thresholds |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2411031EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP2X connectors:IP4X front panel:IP3x other parts: |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-85 % |
| Pep Verification Date | 2023-12-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Operation | -20-70 °C, -20-70 °C, -20-70 °C, -20-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 37.67909924 |
| Environmental Disclosure | ENVPEP2411031EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2411031EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Range Of Product | ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200 |
|---|
| Product Or Component Type | I/O module |
|---|
ETIM
| ETIM 8 | EC001597 |
|---|
| ETIM 9 | EC001597 |
|---|
Output Attributes
| Number Of Outputs | 3 digital |
|---|
| Output Type | digital 250 V - AC - 5 A |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Type | digital state 1 19.8-25.2 V - DC - 6.1-8.8 mA, digital state 0 0-19.8 V - DC - 0-0 mA |
|---|
| Number Of Inputs | 6-6 digital1-1 analog |
|---|
