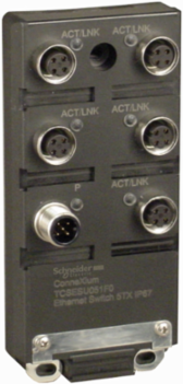

Schneider Electric TCSESU051F0 switch, Modicon Networking, unmanaged switch, 5 ports for copper M12, IP67

MPN: TCSESU051F0
PPN: SCH-TCSESU051F0
UNSPSC: 43201410

$762.15

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon Networking range, an offer of Modicon IP67 Unmanaged Switch. This device comes with Ethernet TCP/IP protocol. It comes with 5 copper cable transmission ports. It provides simple connectivity for multiple Ethernet device . This product works at a power consumption of 3.2W and a rated voltage of 24V DC. It is furnished with 5-way removable M12 connector (power supply) for electrical connection Its dimensions are 60mm (width) x 126mm (height) x 31mm (depth) and weighs 0.21 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on flat surface using screws. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Features

IP67 rating provide protection against shock, foreign particles, dust and water
Provides simple connectivity for multiple Ethernet devices

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany
Depth	31 mm

Weight	210 g

Communications & Management Attributes

Communication Port Protocol	Ethernet TCP/IP

Complementary Attributes

Integrated Connection Type	1 M12 port copper cable
Maximum Number Of Switches In Cascade	unlimited

Maximum Cable Distance Between Devices	100 m copper cable
Us Rated Supply Voltage	24 V

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Marking	CE, UL, RCM
Carbon Footprint Of The Distribution Phase A4	0.0520938351232745, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.009787273379389201, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	137 kg CO2 eq., 136.70806164977205
Local Publishable Date	2026-01-12
Device Type	Networking and Cable Solutions - Networking Devices
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Ethernet Cabling System	TF switches
Mounting Support	35 mm symmetrical DIN rail
Number Of Rj45 Port	5 10/100 Mbps
Power Consumption In W	3.2 W
Product Or Component Type	Ethernet TCP/IP unmanaged switch
Returnability	No
Supply Voltage Limits	18-32 V DC SELV
Total Lifecycle Carbon Footprint	139 kg CO2 eq.
Database Version	2024-01
Height Nominal	126 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To Interconnect equipments with a power consumption of 6 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 6 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	280.32

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Certificate Agency	CE, UL, RCM, EAC, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.4 kg CO2 eq., 0.38726389896758723
Carbon Footprint Of The Manufacturing Phase A1 To A3	2 kg CO2 eq., 2.21865288545462
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1003004EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2024
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Electrical Connection	removable M12 connector 5 ways power supply
Local Signalling	1 LED (green) for power supply1 LED per channel (green) for link status
Number Of Port	5
Port Ethernet	10/100BASE-TX - 5 copper cable
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon Networking
Software Version	v6.2.5-6
Sustainable Packaging	No
Transmission Support Medium	twisted shielded pairs cable CAT 5E copper cable
Data Source	extrapolated product
Width Nominal	60 mm
Customs Code	8517620090
Packaging Weight In G	31.5
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	9

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Reach Free Shvc	Yes
China Rohs Regulation	X
Carbon Footprint	139.3758595426969
Circularity Profile	ENVEOLI1003004EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	0-95 % non-condensing
Pep Verification Date	2025-10-28
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP100304EN_V1
Ip Degree Of Protection	IP67
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP100304EN_V1
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
