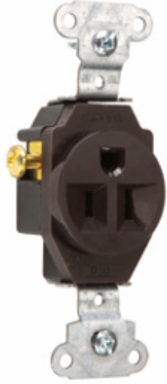

Pass & Seymour 5251 Heavy Duty 15A 125V Single Receptacle, Brown, 1.38 Inch Width, Side Wire
- MPN: 5251
- UPC: 785007525106
- PPN: P-S-5251
CAD
$20.07
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty 15A 125V Single Receptacle, Brown, 1.38 Inch Width, Side Wire
Features
- Auto-ground clip assures positive ground.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
- Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
- One-piece brass triple-wire power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.08 in
- Color
- Brown
- Country of Origin
- Mexico
- Standard
- UL498
- Voltage
- 125.0 V
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Standard
- CSA C22.2 No. 42
- Number of Poles
- Double Pole
- Connection Location
- Side Only
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Features
- Heavy Duty Steel Mounting Strap
- Dielectric Strength
- Withstands 2000V minimum
Width1.38 in
Product LinePass & Seymour
Special FeaturesAuto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention.
Amperage15.0 A
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles1.0
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Operating Temperature-40°-60°C
Environmental ConditionsFlammability: UL94 V2
