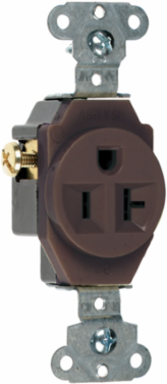

Pass & Seymour 5351 20A 125V Heavy-Duty Spec-Grade Single Receptacle, Brown, 1.08 Inch Depth, 1.38 Inch Width
- MPN: 5351
- UPC: 785007535105
- PPN: P-S-5351
CAD
$31.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Heavy-Duty Spec-Grade Single Receptacle, Brown, 1.08 Inch Depth, 1.38 Inch Width
Features
- Auto-ground clip assures positive ground.
- Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle.
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
- Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability.
- One-piece brass triple-wire power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.08 in
- Width
- 1.38 in
- Country of Origin
- Mexico
- Voltage
- 125.0 V
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Standard
- CSA C22.2 No. 42
- Number of Poles
- Double Pole
- Connection Location
- Side Only
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Operating Temperature
- -40°-60°C
- Environmental Conditions
- Flammability: UL94 V2
- Product Line
- Pass & Seymour
Special FeaturesAuto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention.
StandardUL498
Amperage20.0 A
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles1.0
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-20R
Operating Temperature Max60.0 °C
FeaturesHeavy Duty Steel Mounting Strap
Dielectric StrengthWithstands 2000V minimum
ColorBrown
