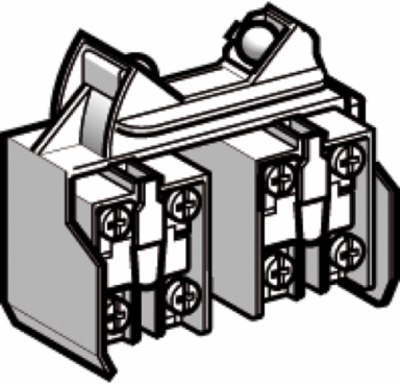

Telemecanique Sensors XCRZ42 Limit switch contact block with mounting plate, Limit switches XC Standard, XCRZ, 2 C/O, snap action
- MPN: XCRZ42
- PPN: TES-XCRZ42
CAD
$276.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch contact block with mounting plate, Limit switches XC Standard, XCRZ, 2 C/O, snap action
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- Contacts Type And Composition
- 2 C/O
- Positive Opening
- without
- Contacts Material
- silver plated contacts
- Product Compatibility
- XCRT
- Number Of Poles
- 2
Series Namespecial format
Range Of ProductOsiSense XC
Contact Operationsnap action
Product Or Component Typelimit switch contact block with mounting plate
Device Short NameXCRZ
Complementary
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 V 3)IEC 60947-1 || 500 VNF C 20-040 group C || 500 VVDE 0110 || 300 VCSA C22.2 No 14
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Contacts Insulation Form
- Za
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Minimum Actuation Speed0.01 mm/s
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111136EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
