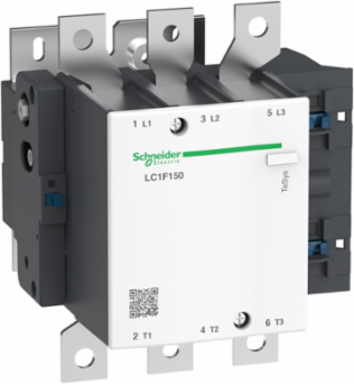

Schneider Electric LC1F150X7 Contactor, TeSys F, 3P(3NO), AC-3 <=440V 150A, 600V AC coil
- MPN: LC1F150X7
- PPN: SCH-LC1F150X7
CAD
$1829.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Contactor, TeSys F, 3P(3NO), AC-3 <=440V 150A, 600V AC coil
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia
Depth171 mm
Complementary Attributes
- Control Circuit Type
- AC 40...400 Hz
- Icw Rated Short Time Withstand Current
- 1200 A 40 °C - 10 s, 700 A 40 °C - 30 s, 600 A 40 °C - 1 min, 450 A 40 °C - 3 min, 350 A 40 °C - 10 min
- Uc Control Circuit Voltage
- 600 V, 600 V AC 40...400 Hz
- Ui Rated Insulation Voltage
- 1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
- Maximum Operating Rate
- 1200 cyc/h 55 °C
- Uimp Rated Impulse Withstand Voltage
- 8 kV
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc 40...400 Hz 55 °C), drop-out 0.2...0.55 Uc 40...400 Hz 55 °C)
Ie Rated Operational Current250 A (at <40 °C) at <= 440 V AC-1, 150 A (at <55 °C) at <= 440 V AC-3
Ue Rated Operational Voltage<= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz<= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz
Maximum Motor Phase Current150 A
Rated Breaking Capacity1200 A conforming to IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 160 A aM at <= 440 V, 250 A gG at <= 440 V
- Motor Power Kw
- 75 kW at 380...400 V AC 50/60 Hz (AC-3), 80 kW at 415 V AC 50/60 Hz (AC-3), 80 kW at 440 V AC 50/60 Hz (AC-3), 90 kW at 500 V AC 50/60 Hz (AC-3), 100 kW at 660...690 V AC 50/60 Hz (AC-3), 40 kW at 220...230 V AC 50/60 Hz (AC-3), 22 kW at 400 V AC 50/60 Hz (AC-4)
- Operating Time
- 35 ms closing at Uc), 130 ms opening at Uc)
- Product Or Component Type
- contactor
- Range
- TeSys
- Utilisation Category
- AC-3, AC-1, AC-4
- Icw Rated Short Time Withstand Current
- 1200 A 40 °C - 10 s, 700 A 40 °C - 30 s, 600 A 40 °C - 1 min, 450 A 40 °C - 3 min, 350 A 40 °C - 10 min
- Carbon Footprint Of The Distribution Phase A4
- 0.7019019380813037, 0.7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.3265308693150226, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 474 kg CO2 eq., 473.9372250736914
- Certificate Agency
- BV, RINA, LROS (Lloyds register of shipping), RMRoS, ABS, CCC, CB, UL, DNV
- Local Publishable Date
- 2026-04-23
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 0.35 mOhm - Ith 250 A 50 Hz
- Contactor Coil Voltage
- 600 V AC standard
- Energy Efficiency Optimized
- False
- Hold In Power Consumption In Va
- 6.6-8.1 VA, 40...400 Hz 0.9 20 °C)
- Mechanical Durability
- 10 Mcycles
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rated Thermal Current Ith
- 250 A
- Inf Motor Phase Current
- 150 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 1156.32
- Energy Model - Installation [A5]
- Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Height Nominal
- 170 mm
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationresistive load, motor control
Mounting Supportplate
Power Dissipation Per Pole22 W AC-1, 8 W AC-3
Protective TreatmentTH
Tightening Torquecontrol circuit 1.2 N.m, power circuit 18 N.m
Connections Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 2 1-4 mm²solid without cable endcontrol circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid without cable end, power circuit bar 2 25 x 3 mm, power circuit lugs-ring terminals 1 120-120 mm², power circuit connector 1 120-120 mm², power circuit bolted connection
Ie Rated Operational Current250 A (at <40 °C) at <= 440 V AC-1, 150 A (at <55 °C) at <= 440 V AC-3
Carbon Footprint Of The End Of Life Phase C1 To C46 kg CO2 eq., 6.480291283629696
Carbon Footprint Of The Manufacturing Phase A1 To A371 kg CO2 eq., 70.74302977018031
Control Circuit Voltage600 V
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2405025
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2022
China Rohs In ScopeNo
Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeLC1F
Device Short NameLC1F
Heat Dissipation5.9-7.2 W
Inrush Power In Va690-855 VA, 40...400 Hz 0.9 20 °C)
Number Of Poles3P
Pole Contact Composition3 NO
Range Of ProductTeSys F
Software Versionv6.1
Total Lifecycle Carbon Footprint552 kg CO2 eq.
Ith Conventional Free Air Thermal Current250 A (at 40 °C)
Warranty In Months18
Pep CodeENVPEP2405025EN
Pep Verification Date2025-08-11
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
Recyclability Potential, In %91
Width Nominal163.5 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2405025
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- 60-70 °C at Uc
- Pep Code
- ENVPEP2405025EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-40-60 °C, -40-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint552.1889789348977
Environmental DisclosureENVPEP2405025EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-11
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
