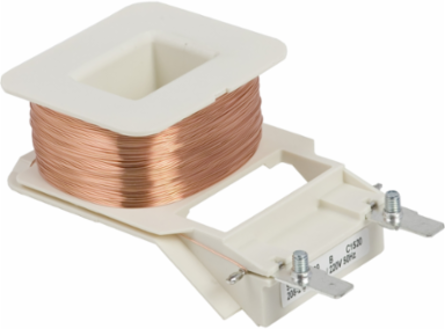

Square D 9998DA3V09 Contactor, Definite Purpose, replacement coil, 220/240VAC 50/60Hz, for 8910DPA 75A and 90A contactors, 2 and 3 poles
- MPN: 9998DA3V09
- UPC: 785901099710
- PPN: SCH-9998DA3V09
CAD
$143.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8910DPA definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA7 or 8910DPA9 definite purpose contactor rated 75A or 90A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 220/240 VAC 50/60 Hz coil is for a 8910DPA7 and 8910DPA9 definite purpose contactor. The inrush power of this coil is 214 VA. It has an average sealed consumption of 19 VA. This coil is used in a contactor that is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico, United States
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- Product Kit Identifier
- N
- Returnability
- Yes
- Nbr. Of Units In Pkg.
- 1
- Warranty (In Months)
- 18
Local Publishable Date2025-11-13
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1905
China Rohs In ScopeNo
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Sustainable PackagingNo
Package Weight(Lbs)167.829 g
Customs Code8504508000
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant By Exemption
Mercury FreeYes
