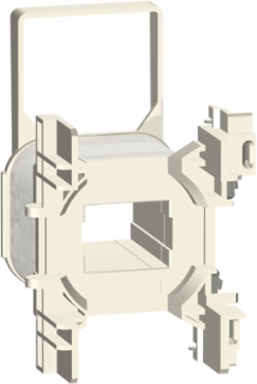

Schneider Electric LXD3G7 TeSys Deca Contactor Coil, 120V AC 60Hz, 160 VA Inrush Power
- MPN: LXD3G7
- PPN: SCH-LXD3G7
- UNSPSC: 39121529
CAD
$166.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The TeSys Deca contactor coil from Schneider Electric is engineered to provide dependable control within automation and control applications. Operating at 120V AC with a frequency of 60Hz, this coil boasts an inrush power of 160 VA, ensuring robust performance during operation. Ideal for integration in starters and contactors, it plays a pivotal role in managing electrical equipment with precision and efficiency, making it a valuable component for various industrial and commercial settings.
Features
- Engineered specifically for original equipment manufacturer (OEM) precision, the LXD3G7 is perfectly compatible with Schneider Electric TeSys D and TeSys Deca contactors, including LC1D40A through LC1D80A, LC2D40A through LC2D80A, and 4-pole LC1DT60A to LC1DT80A models. This precise mechanical alignment eliminates sizing guesswork, ensuring your existing industrial motor control starters resume full operations without forcing a full, costly contactor replacement.
- The LXD3G7 operates at a standard 120V AC at 60Hz control circuit voltage, perfectly matching standard industrial control transformers and North American commercial electrical panels. This dedicated alternating current engineering provides highly predictable drop-out and operational threshold performance (0.85 to 1.1 Uc), eliminating localized control circuit chattering or premature voltage drops under heavy machine cycles.
- Boasting a rugged mechanical durability rating of up to 6 million cycles and an operating rate of up to 3,600 cycles per hour at peak ambient temperatures, the LXD3G7 is engineered for punishing, high-frequency industrial environments. This commercial-grade reliability ensures your automated assembly lines, HVAC equipment, and heavy pump systems continue running continuously with zero unexpected electrical dropouts.
Documentation & Downloads
Specifications
Key Specifications
- Average Resistance
- 37.63 Ohm 20 °C
- Control Circuit Type
- AC 60 Hz
- Range
- TeSys
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Product Compatibility
- LC1D40A...D80A || LC2D40A...D80A || LC1DT60A...DT80A
[Uc] Control Circuit Voltage120 V AC 60 Hz
Product Or Component Typecontactor coil
Inductance Of Closed Circuit2.07 H
Mechanical Durability6 Mcycles
Device Short NameLXD3
Complementary
- Control Circuit Voltage Limits
- drop-out: 0.3...0.6 Uc at 60 Hz (at <60 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 4-5 W 60 Hz
Inrush Power In Va160-160 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-In Power Consumption In Va15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
Net Weight0.07 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Toxic Heavy Metal FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
