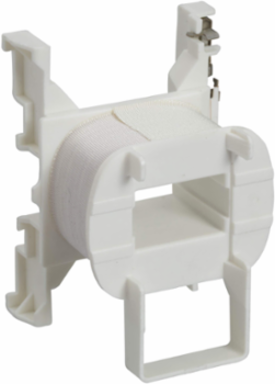

Schneider Electric LXD1M7 TeSys D Contactor Coil, 220V AC 50/60Hz for 9-38A Contactors

MPN: LXD1M7
PPN: SCH-LXD1M7

$117.98

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca replacement coil 220V AC 50/60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C

Features

Specifically wound for a 220V AC 50/60Hz power supply, this genuine Schneider Electric replacement coil ensures your TeSys D contactor or CAD relay operates with precision timing. Matching the exact control voltage prevents coil burnout and intermittent chatter, guaranteeing that your motor starters and industrial automation sequences remain stable under heavy duty cycles.
Engineered as a direct factory replacement for LC1D09 through LC1D38 and CAD control relays, this LXD1M7 coil restores your hardware to original manufacturer specifications. Using genuine parts maintains the UL/CSA certification of your entire control panel, avoiding the mechanical fitment issues and premature failures often associated with generic aftermarket components.
Designed with advanced electromagnetic efficiency, this coil minimizes sealed power consumption and heat dissipation during long-term engagement. Reducing the thermal load inside your electrical enclosure extends the lifespan of surrounding sensitive electronics and prevents the insulation degradation that leads to shorted windings in high-density motor control centers.
Featuring the standard TeSys "plug-and-play" architecture, this coil can be swapped into existing contactors without de-mounting the entire device from the DIN rail. This streamlined maintenance process slashes mean time to repair (MTTR), allowing your facility technicians to restore critical production lines or HVAC systems in minutes rather than hours.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Indonesia, United States

Complementary Attributes

Control Circuit Voltage Limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Maximum Operating Rate	3600 cyc/h 60 °C

Control Circuit Type	AC 50/60 Hz

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Inrush Power In Va	70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Local Publishable Date	2026-06-27
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI100405EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1904
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	without built-in suppressor module
Heat Dissipation	2-3 W 50/60 Hz
Mechanical Durability	15 Mcycles
Product Or Component Type	contactor coil
Range Of Product	TeSys Deca
Sustainable Packaging	Yes
[Uc] Control Circuit Voltage	220 V AC 50/60 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504508000

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Traceability	No
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Resistance	515.4 Ohm 20 °C
Device Short Name	LXD1
Inductance Of Closed Circuit	18 H
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Pep Code	ENVPEP0603001EN
Hold-in Power Consumption In Va	7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)	67.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Product Compatibility	CAD, LC1D09...D38, LC1DT20...DT40
Recycled Metal Content At Cr Level	0 %
Circularity Profile	ENVEOLI100405EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP0603001EN

Ambient Air Temperature For Operation	-5-60 °C, -5-60 °C
Take Back	No
Mercury Free	Yes
Environmental Disclosure	ENVPEP0603001EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
