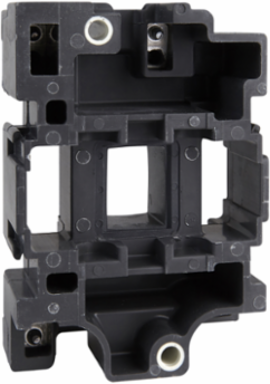

Schneider Electric LX1D6M7 TeSys Deca Contactor Coil 220V AC 50/60Hz for 80 & 95A Contactors
- MPN: LX1D6M7
- PPN: SCH-LX1D6M7
CAD
$190.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric LX1D6M7 TeSys Deca Contactor Coil is an essential component designed for reliable operation in industrial automation and control systems. Operating at 220V AC and suitable for both 50 and 60Hz environments, this coil is specifically engineered to work with 80 and 95A contactors, ensuring optimal performance and efficiency. As part of the broader category of starters and contactors, it plays a critical role in managing electrical circuits, making it an indispensable element for professionals who prioritize durability and dependability in their control systems.
Features
- The Schneider Electric LX1D6M7 replacement AC coil is engineered explicitly for seamless integration with 3-pole and 4-pole TeSys Deca and TeSys D contactors, specifically covering the LC1D80 to LC1D95 series (80A and 95A models). Upgrading or repairing your current motor starters with this genuine OEM component eliminates physical alignment issues and sizing headaches, keeping your industrial machinery online without the cost of replacing the entire contactor assembly.
- This control circuit coil is optimized to operate on a 220V AC supply at both 50Hz and 60Hz dual-frequencies, ensuring stable electrical performance across diverse power systems. This flexibility prevents localized voltage drops or frequency variations from causing contactor chattering or premature drop-out, securing stable operation for heavy-duty inductive motor loads.
- Designed to manage a powerful 245 VA inrush power requirement while dropping down to an ultra-efficient 26 VA hold-in power consumption, this magnet coil limits heat dissipation to just 6 to 10 watts. This efficient energy profile keeps your control panels running cool, minimizing thermal stress inside the enclosure and protecting nearby sensitive automation components from degradation.
- Built to withstand rigorous industrial environments, the coil boasts a mechanical durability rating of up to 4 million cycles and can comfortably handle a maximum operating rate of up to 3,600 cycles per hour. This rugged engineering ensures your high-demand automation lines and automated processes experience absolute reliability over millions of operational sequences under a wide ambient temperature range (-5 C to 60 C).
- This component features a design completely free of toxic heavy metals and mercury, RoHS compliant and satisfies REACh environmental regulations. Choosing this authentic component helps your facility align with rigorous environmental audits while ensuring top-tier electrical safety compliance on the factory floor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C), operational: 0.8...1.1 Uc at 50 Hz (at <55 °C)operational: 0.85...1.1 Uc at 60 Hz (at <55 °C)
- Maximum Operating Rate
- 3600 cyc/h 60 °C
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inrush Power In Va
- 245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1924
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Resistance
- 102 Ohm 20 °C
- Device Short Name
- LX1D6
- Heat Dissipation
- 6-10 W 50/60 Hz
- Mechanical Durability
- 4 Mcycles
- Product Or Component Type
- contactor coil
- Range Of Product
- TeSys Deca
- Sustainable Packaging
- No
- [Uc] Control Circuit Voltage
- 220 V AC 50/60 Hz
- Package Weight(Lbs)
- 313.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Hold-in Power Consumption In Va26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
Local Publishable Date2026-07-13
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologywithout built-in suppressor module
Energy Efficiency OptimizedFalse
Inductance Of Closed Circuit6.7 H
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Pep CodeENVPEP1102005EN
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504508000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility
- LC1D40, LC1D50, LC1D65...D95
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1102005EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1102005EN
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
