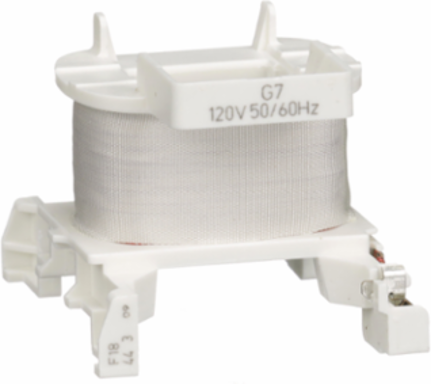

Schneider Electric LXD1G7 TeSys Deca Contactor Coil 120V AC 50/60Hz for 9-38A Contactors
- MPN: LXD1G7
- PPN: SCH-LXD1G7
CAD
$117.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This 120V AC contactor coil from Schneider Electric is designed specifically for use with TeSys Deca contactors rated for currents between 9 to 38 amps, operating at both 50 and 60 Hz. It plays a crucial role in the automation and control sector, ensuring reliable operation of electrical starters and contactors. The coil's robust engineering caters to varying industrial needs, making it a valuable component in efficient control systems. Schneider Electric's commitment to quality and performance is evident in this product's durable design, ensuring consistent functionality in a range of applications.
Features
- Engineered specifically for Schneider Electric TeSys D contactors (frames LC1D09 through LC1D38), this replacement coil restores your switching hardware to factory specifications. It provides an exact mechanical fit, eliminating the need to replace the entire contactor assembly when a coil burns out, saving significant hardware costs and minimizing system downtime.
- Operating at a standard 120V AC nominal voltage, this coil integrates seamlessly into standard industrial control circuits and machine automation networks. It is dual-frequency rated for both 50Hz and 60Hz, ensuring stable, chattering-free contact seatings even when facing minor utility frequency fluctuations or voltage drops under heavy plant loads.
- Operating at a standard 120V AC nominal voltage, this coil integrates seamlessly into standard industrial control circuits and machine automation networks. It is dual-frequency rated for both 50Hz and 60Hz, ensuring stable, chattering-free contact seatings even when facing minor utility frequency fluctuations or voltage drops under heavy plant loads.
- Engineered for high electrical efficiency, this coil features an optimized inrush rating of 70 VA and a sealed holding consumption of just 7 VA at 60Hz. This low-draw profile minimizes heat dissipation inside tight electrical enclosures and prevents excessive voltage sags on your control transformer, allowing you to safely run multiple pilot devices on a single control circuit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
- Maximum Operating Rate
- 3600 cyc/h 60 °C
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inrush Power In Va
- 70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Resistance
- 150.6 Ohm 20 °C
- Device Short Name
- LXD1
- Inductance Of Closed Circuit
- 5.4 H
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- [Uc] Control Circuit Voltage
- 120 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504508000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologywithout built-in suppressor module
Heat Dissipation2-3 W 50/60 Hz
Mechanical Durability15 Mcycles
Product Or Component Typecontactor coil
Range Of ProductTeSys Deca
Sustainable PackagingYes
Hold-in Power Consumption In Va7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)69.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility
- LC1D09...D38, CAD, LC1DT20...DT40
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
