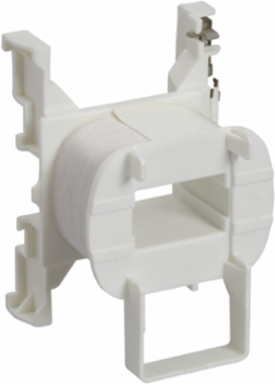

Schneider Electric LXD1E7 TeSys Deca Contactor Coil 48V AC 50/60Hz for 9-38A Contactors
- MPN: LXD1E7
- PPN: SCH-LXD1E7
CAD
$117.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca replacement coil 48V AC 50/60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, Singapore
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
- Maximum Operating Rate
- 3600 cyc/h 60 °C
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inrush Power In Va
- 70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1501004
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Resistance
- 21.7 Ohm 20 °C
- Device Short Name
- LXD1
- Inductance Of Closed Circuit
- 0.87 H
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Pep Code
- ENVPEP1501004EN
- Hold-in Power Consumption In Va
- 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
- Package Weight(Lbs)
- 75.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologywithout built-in suppressor module
Heat Dissipation2-3 W 50/60 Hz
Mechanical Durability15 Mcycles
Product Or Component Typecontactor coil
Range Of ProductTeSys Deca
Sustainable PackagingYes
[Uc] Control Circuit Voltage48 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504504000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility
- LC1DT20...DT40, LC1D09...D38, CAD
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI1501004
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1501004EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1501004EN
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
