Square D

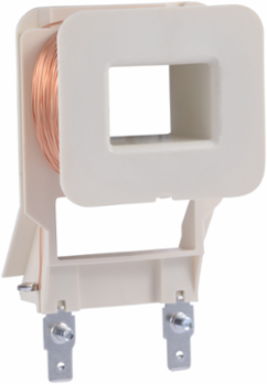

Square D 9998DA3V02 Definite Purpose Contactor Replacement Coil 110/120VAC 75A 90A

Definite Purpose Contactor Replacement Coil 110/120VAC 75A 90A
  • MPN: 9998DA3V02
  • UPC: 785901099673
  • PPN: SCH-9998DA3V02

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$155.25/ EA

Description

8910DPA definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA7 or 8910DPA9 definite purpose contactor rated 75A or 90A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 110/120 VAC 50/60 Hz coil is for a 8910DPA7 and 8910DPA9 definite purpose contactor. The inrush power of this coil is 214 VA. It has an average sealed consumption of 19 VA. This coil is used in a contactor that is UL listed and CSA certified.

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Mercury Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
