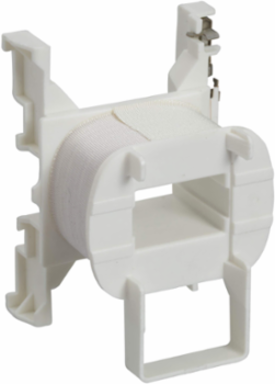

Schneider Electric LXD1SC7 TeSys Deca Contactor Coil, 575 V AC, 9-38 A, PVC Free, 0.07 kg
- MPN: LXD1SC7
- PPN: SCH-LXD1SC7
- UNSPSC: 39121529
CAD
$102.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The TeSys Deca contactor coil from Schneider Electric is engineered for exceptional performance in automation and control applications. Operating at 575 V AC, it effectively handles current ratings between 9 to 38 A, making it a versatile choice for various electrical systems. Notably designed without PVC, this coil emphasizes environmental considerations while maintaining reliability and efficiency. Its lightweight construction at just 0.07 kg ensures easy installation and integration into existing setups, making it an essential component for professionals seeking dependable solutions in starters and contactors.
Documentation & Downloads
Specifications
Key Specifications
| Average Resistance | 3294 Ohm 20 °C |
|---|---|
| Control Circuit Type | AC 50/60 Hz |
| Range | TeSys |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Product Compatibility | LC1DT20...DT40 || CAD || LC1D09...D38 |
| [Uc] Control Circuit Voltage | 575 V AC 50/60 Hz |
|---|---|
| Product Or Component Type | contactor coil |
| Inductance Of Closed Circuit | 125 H |
| Mechanical Durability | 15 Mcycles |
| Device Short Name | LXD1 |
Complementary
| Control Circuit Voltage Limits | drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) || operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) |
|---|---|
| Coil Technology | without built-in suppressor module |
| Heat Dissipation | 2-3 W 50/60 Hz |
| Inrush Power In Va | 70-70 VA 60 Hz cos phi 0.75 (at 20 °C) || 70-70 VA 50 Hz cos phi 0.75 (at 20 °C) |
|---|---|
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) || 7-7 VA 50 Hz cos phi 0.3 (at 20 °C) |
Environment
| Ambient Air Temperature For Operation | -5-60 °C |
|---|
| Net Weight | 0.07 kg |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1501004 |
| Pvc Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Circularity Profile | ENVEOLI1501004 |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
