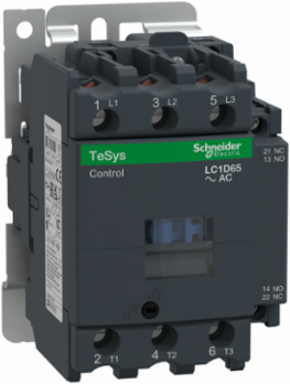

Schneider Electric LC1D65U7 TeSys Deca Contactor 65A 240V AC 3P Screw Clamp Terminals
- MPN: LC1D65U7
- PPN: SCH-LC1D65U7
CAD
$506.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric LC1D65U7 TeSys Deca Contactor is engineered for reliable control in various automation and industrial applications. This robust contactor features a 65A rating and is designed to operate efficiently at 240V AC, making it suitable for a wide range of electrical systems. With its screw clamp terminals, installation becomes straightforward, ensuring secure connections for optimal performance. Ideal for those who require dependable control solutions, this contactor is a key component in starter and contactor setups within the NEMA category.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Poles
- 3P
- Utilisation Category
- AC-1, AC-2, AC-3, AC-3e, AC-4
- Rated Short-Time Withstand Current
- 520 A (10 s), 900 A (1 s) at 40 °C for power circuit
- Average Impedance
- 1.5 Ohm (Ith 80 A 50 Hz) for power circuit
- Overvoltage Category
- III
- Mechanical Durability
- 6,000,000 cycles
- Maximum Operating Rate
- 3600 cycles/min at 60 °C
- Tightening Torque
- 1.7 N.m for control circuit, 5 N.m for power circuit
- Minimum Switching Voltage
- 17 V for control circuit
- Insulation Resistance
- > 10 MOhm for control circuit
- Dimensions (HxWxD)
- 122 mm x 70 mm x 118 mm
- Material
- without built-in coil technology
- Product Certifications
- DNV, UL, RINA, CCC, CSA, LROS, BV, GL, UKCA
- IP Degree of Protection
- IP2X VDE 0106, IP2X IEC 60529
- Climatic Withstand
- IACS E10 exposure to damp heat
- Fire Resistance
- 850 °C IEC 60695-2-1
- Mechanical Robustness
- Shocks: 10 Gn (opened), 15 Gn (closed); Vibrations: 2 Gn (opened), 4 Gn (closed) 5-300 Hz
- Sustainable Offer Status
- Green Premium product
Control Circuit Voltage240 V AC 50/60 Hz
Pole Contact Composition3 NO
Rated Breaking Capacity1000 kA at 440 V for power circuit
Associated Fuse Rating125 A gG coordination type 2, 160 A gG coordination type 1 for power circuit, 10 A gG for control circuit
Rated Insulation Voltage600 V (UL, CSA) control circuit; 690 V (IEC, CSA) power circuit
Rated Impulse Withstand Voltage6 kV IEC 60947
Operating Time12...26 ms closing, 4...19 ms opening
Terminal Connection TypeScrew clamp terminals for control circuit, screw terminals for power circuit
Auxiliary Contact Composition1 NO + 1 NC
Minimum Switching Current5 mA for control circuit
Mounting SupportPlate, Rail
Net Weight2.185 kg
ComplianceRoHS Compliant, Prop 65 Compliant, Mercury Free, PVC Free
StandardsEN 60947-4-1, CSA C22.2 No 14, IEC 60947-4-1, EN 60947-5-1, UL 508
Protective TreatmentTH (IEC 60068-2-30)
Operating Altitude0-3000 m (0-9842 ft)
Flame RetardanceV1 UL 94
Warranty18 months
