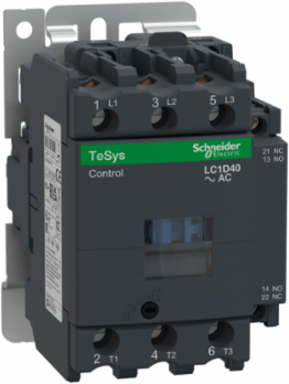

Schneider Electric LC1D40P7 TeSys Deca Contactor 3P 40A 230V AC 50/60Hz, IP2X, 1.4 kg
- MPN: LC1D40P7
- PPN: SCH-LC1D40P7
CAD
$413.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This TeSys Deca contactor from Schneider Electric is engineered for robust automation and control applications. With a three-pole configuration rated for 40A at 230V AC for both 50 and 60Hz frequencies, it ensures reliable operation across various environments. Designed with an IP2X protection rating, this contactor supports safe installation and operation while maintaining a compact form factor of just 1.4 kg. Ideal for use in NEMA-rated applications, the LC1D40P7 is a dependable choice for those seeking efficient and effective motor control solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France
Depth119 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz, AC 50/60 Hz
- Maximum Horse Power Rating
- 10 hp at 230/240 V AC 60 Hz for 3 phase motors3 hp at 115 V AC 60 Hz for 1 phase motors5 hp at 230/240 V AC 60 Hz for 1 phase motors, 10 hp at 200/208 V AC 60 Hz for 3 phase motors30 hp at 460/480 V AC 60 Hz for 3 phase motors, 30 hp at 575/600 V AC 60 Hz for 3 phase motors
- Maximum Motor Phase Current
- 40 A
- Minimum Switching Current
- 5 mA for control circuit
- Rated Breaking Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Irms Rated Making Capacity800 A at 440 V for power circuit conforming to IEC 60947140 A AC for control circuit conforming to IEC 60947-5-1
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for control circuit conforming to IEC 60947-5-180 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit
- Inrush Power In Va
- 140-140 VA cos phi 0.75 (at 20 °C), 160-160 VA cos phi 0.75 (at 20 °C)
- Mechanical Robustness
- shocks contactor opened 10 Gn for 11 ms)shocks contactor closed 15 Gn for 11 ms)vibrations contactor opened 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz)
- Mounting Support
- rail, plate
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminal Philips No 2power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm, control circuit 1.7 N.m screw clamp terminal pozidriv No 2
- Control Circuit Voltage
- 230 V
- [Ie] Rated Operational Current
- 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- [Ui] Rated Insulation Voltage
- power circuit 600 V ULpower circuit 690 V IEC 60947-1control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSAcontrol circuit 690 V IEC 60947-1
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3.328416174215296, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 8.921945858891672
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- LC1D
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 4-5 W at 50/60 Hz for control circuit
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Returnability
- No
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 52 kg CO2 eq.
- Inf Motor Phase Current
- 40 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 595.68
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 127 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for control circuit60 A (at 60 °C) for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Insulation Resistance> 10 MOhm for control circuit, > 10 MOhm for control circuit> 10 MOhm for control circuit, > 10 MOhm for control circuit
Motor Power Kw22 kW at 500 V AC 50 Hz (AC-3e), 30 kW at 660...690 V AC 50 Hz (AC-3e), 22 kW at 1000 V AC 50 Hz (AC-3e), 22 kW at 415 V AC 50 Hz (AC-3e), 22 kW at 440 V AC 50 Hz (AC-3e), 11 kW at 220...230 V AC 50 Hz (AC-3e)18.5 kW at 380...400 V AC 50 Hz (AC-3)22 kW at 500 V AC 50 Hz (AC-3)30 kW at 660...690 V AC 50 Hz (AC-3), 22 kW at 1000 V AC 50 Hz (AC-3), 22 kW at 415 V AC 50 Hz (AC-3), 22 kW at 440 V AC 50 Hz (AC-3)11 kW at 220...230 V AC 50 Hz (AC-3), 9 kW at 400 V AC 50 Hz (AC-4), 18.5 kW at 380...400 V AC 50 Hz (AC-3e)
Power Dissipation Per Pole5.4 W AC-12.4 W AC-3, 2.4 W AC-3e
Utilisation CategoryAC-3, AC-4, AC-1, AC-2, AC-3e
Certificate AgencyGL, BV, DNV, LROS (Lloyds register of shipping), RINA, UL, CCC, CSA, GOST, UKCA, CB
[Uc] Control Circuit Voltage230 V, 230 V AC 50/60 Hz
Connections - Terminalscontrol circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: 2 2.5-16 mm² - cable stiffness: rigidpower circuit: 1 2.5-25 mm² - cable stiffness: flexible without cable endpower circuit: 2 2.5-16 mm² - cable stiffness: flexible without cable endpower circuit: 1 2.5-25 mm² - cable stiffness: flexible with cable endpower circuit: 2 2.5-10 mm² - cable stiffness: flexible with cable endscrew clamp terminals, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigidcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: rigid
Carbon Footprint Of The Distribution Phase [A4]0.1760063361869087, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.3 kg CO2 eq., 0.2523595925959343
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]40 kg CO2 eq., 39.799710144927516
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Coil Technologywithout built-in bidirectional peak limiting diode suppressor
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Mechanical Durability6 Mcycles
Operating Time4...19 ms opening12...26 ms closing
Pole Contact Composition3 NO
Product Or Component Typecontactor
Range Of ProductTeSys Deca
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1102005EN
Pep Verification Date2025-11-20
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %76
Width Nominal75 mm
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz
Hold-in Power Consumption In Va13-13 VA 60 Hz cos phi 0.3 (at 20 °C)15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)1.453 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Climatic Withstand
- IACS E10 exposure to damp heat
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1102005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP2X IEC 60529, IP2X VDE 0106
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint52.47843810681733
Environmental DisclosureENVPEP1102005EN
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-11-20
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
