TeSys Deca Contactor 50A 3P 240V AC Coil 119mm Depth
Schneider Electric

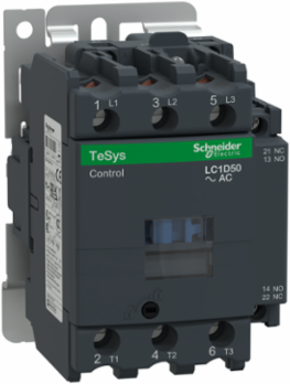

Schneider Electric LC1D50U7 TeSys Deca Contactor 50A 3P 240V AC Coil 119mm Depth

  • MPN: LC1D50U7
  • PPN: SCH-LC1D50U7

CAD

$426.91

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This TeSys Deca Contactor from Schneider Electric embodies reliability and efficiency, featuring a robust design tailored for automation and control applications. With a current rating of 50A and a three-pole configuration, it is adept at handling various electrical loads, making it suitable for a wide range of starter and contactor needs. The 240V AC coil ensures compatibility with standard control circuits, while the compact 119mm depth allows for easy installation in space-constrained environments. Crafted for durability, this contactor is built to meet the demands of industrial applications, offering peace of mind in performance and longevity.

Documentation & Downloads

Specifications

Additional

Rated Operational Current
50 A at <= 440 V AC AC-3 for power circuit
Maximum Horsepower Rating
40 Hp at 460/480 V AC 60 Hz for 3 phase motors
Rated Making Capacity (Irms)
900 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for control circuit IEC 60947-5-1
Associated Fuse Rating
10 A gG for control circuit IEC 60947-5-1, 100 A gG at <= 690 V coordination type 1 and 2 for power circuit
Rated Insulation Voltage
600 V CSA and UL for control and power circuit, 690 V IEC 60947-1
Impulse Withstand Voltage
8 kV IEC 60947
Control Circuit Type
AC 50/60 Hz
Hold-in Power Consumption
13 VA at 60 Hz, 15 VA at 50 Hz cos phi 0.3 at 20 °C
Maximum Operating Rate
3600 cycles/hour at 60 °C
Tightening Torque
1.7 N.m for control circuit, 5 N.m for power circuit
Minimum Switching Voltage
17 V for control circuit
IP Degree of Protection
IP2X IEC 60529 and VDE 0106
Fire Resistance Temperature
850 °C IEC 60695-2-1
Height
127 mm
Depth
119 mm
Country of Origin
Czech Republic
Mercury Free
Yes
Toxic Heavy Metal Free
Yes
Standards
IEC 60947-5-1, IEC 60947-4-1, UL 508, CSA C22.2 No 14, EN 60947-5-1, EN 60947-4-1
Mounting Support
Rail, Plate
Range Of Product
TeSys Deca
Device Short Name
LC1D
Operating Environment
-40...70 °C depending on control voltage and conditions
Motor Power22 kW at 380...400 V AC 50 Hz (AC-3), 25 kW at 415 V AC 50 Hz (AC-3), 30 kW at 440 V AC 50 Hz (AC-3), 30 kW at 500 V AC 50 Hz (AC-3), 33 kW at 660...690 V AC 50 Hz (AC-3)
Thermal Current (Ith)80 A at 60 °C for power circuit
Rated Breaking Capacity900 A at 440 V for power circuit conforming to IEC 60947
Power Dissipation per Pole3.7 W AC-3
Overvoltage CategoryIII
Mechanical Durability6,000,000 cycles
Inrush Power140-160 VA cos phi 0.75 at 20 °C
Operating Time4...19 ms opening, 12...26 ms closing
Terminal Cable SizeControl circuit: 1...4 mm² rigid or flexible, Power circuit: 2.5...25 mm² rigid or flexible
Auxiliary Contact Compositionmechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
Minimum Switching Current5 mA for control circuit
Operating Altitude0...3000 m
Flame RetardanceV1 UL 94
Width75 mm
Net Weight1.4 kg
RoHS ComplianceCompliant (EU and China RoHS)
PVC FreeYes
Reach StatusFree of Substances of Very High Concern above threshold
Product CertificationsBV, CCC, Lloyds Register, DNV, GOST, GL, RINA, UL, CSA, UKCA
Contactor ApplicationResistive load, Motor control
Compatibility CodeLC1D
Climatic WithstandIACS E10 exposure to damp heat
Safety Reliability LevelB10d = 1,369,863 cycles (nominal load), 20,000,000 cycles (mechanical load) EN/ISO 13849-1
