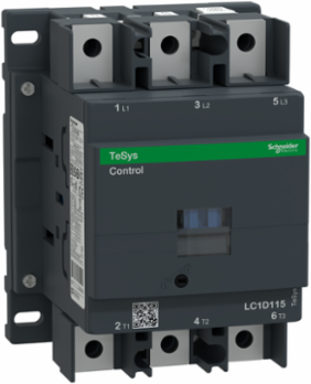

Schneider Electric LC1D1156F7 TeSys Deca Contactor, 3 Pole, 115A, 110V AC Coil, 120mm Width
- MPN: LC1D1156F7
- PPN: SCH-LC1D1156F7
CAD
$1171.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). They can be used to create motor starters for almost any type of application. It provides a 110V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection for bars or lugs, control connection for lugs. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Contactor is rated for 30HP at 200 to 208VAC, 40HP at 240VAC, 75HP at 480VAC and 100HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Features
- Engineered for high-demand industrial environments, this 3-pole (3 NO) contactor supports an operational current of up to 115 A under AC-3/AC-3e classifications (up to 440 V) and 200 A for resistive AC-1 loads. This means you can reliably control motors up to 75 hp at 480 V or 100 hp at 600 V, eliminating downtime in critical conveyor, pumping, or HVAC automation systems.
- Featuring a dedicated 110 V AC coil operating at both 50 Hz and 60 Hz, this unit drops seamlessly into standard North American and international industrial control panels. The built-in bidirectional peak-limiting diode suppressor protects delicate upstream PLC outputs from high-voltage transient spikes during switching.
- This specific variant is equipped with specialized lug-ring and bar terminals rather than standard box clamps, facilitating robust, high-vibration-resistant bolting for large-gauge power cables. It ensures an ultra-secure, low-resistance connection capable of handling heavy electrical thermal currents up to 200 A safely.
- It comes standard with 1 NO (Normally Open) and 1 NC (Normally Closed) built-in auxiliary contacts, including a certified mirror contact for safety circuits. This integrated layout saves valuable DIN rail space and eliminates the added cost of external snap-on blocks when wiring up status indicators or hardwired safety interlocks.
- Built to the legendary TeSys Deca Advanced standard, this contactor supports maximum operating rates up to 2,400 cycles per hour and performs flawlessly in ambient temperatures up to 60 C. This exceptional mechanical and electrical durability ensures years of maintenance-free operation in heavy manufacturing facilities.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth136 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz
- Irms Rated Making Capacity
- 1260 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1
- Maximum Operating Rate
- 2400 cyc/h at 60 °C
- Minimum Switching Voltage
- 17 V for signalling circuit
Control Circuit Voltage Limits0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz1...1.15 Uc (55-70 °C):operational AC 50/60 Hz
Maximum Horse Power Rating30 hp at 200/208 V AC 50/60 Hz for 3 phase motors40 hp at 230/240 V AC 50/60 Hz for 3 phase motors75 hp at 460/480 V AC 50/60 Hz for 3 phase motors100 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Minimum Switching Current5 mA for signalling circuit
Rated Breaking Capacity1100 A at 440 V for power circuit conforming to IEC 60947
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- motor control, resistive load
- Inrush Power In Va
- 280-350 VA 60 Hz cos phi 0.8 (at 20 °C), 280-350 VA 50 Hz cos phi 0.8 (at 20 °C)
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor closed 15 Gn for 11 ms), shocks contactor open 6 Gn for 11 ms)
- Mounting Support
- plate, rail
- Tightening Torque
- control circuit 1.2 N.m lugs-ring terminals flat Ø 6 mm M3.5, control circuit 1.2 N.m lugs-ring terminals Philips No 2 M3.5, power circuit 12 N.m lugs-ring terminals hexagonal 13 mm M8, power circuit 12 N.m bars hexagonal 13 mm M8, control circuit 1.2 N.m lugs-ring terminals pozidriv No 2 M3.5
- Certificate Agency
- UL, CSA, CCC, UKCA, CE, EAC, Marine
- [Ui] Rated Insulation Voltage
- signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 600 V CSA, power circuit 600 V ULpower circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1
- Hold-in Power Consumption In Va
- 2-18 VA 60 Hz cos phi 0.3 (at 20 °C), 2-18 VA 50 Hz cos phi 0.3 (at 20 °C)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.7508929239734572, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3 kg CO2 eq., 0.2654427709841767
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 82 kg CO2 eq., 81.50132194244603
- Local Publishable Date
- 2026-07-12
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 250 A gG at <= 690 V coordination type 1 for power circuit200 A gG at <= 690 V coordination type 2 for power circuit10 A gG for signalling circuit
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Contact Compatibility
- M13
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 3-8 W at 50/60 Hz
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- THIEC 60068-2-30
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 109 kg CO2 eq.
- Control Circuit Voltage 18
- 110 V AC 50/60 Hz
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3NO, a control circuit voltage 230V AC, a power circuit voltage 1000V and a rated operational current 150 A.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1219.83
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 158 mm
- [Icw] Rated Short-time Withstand Current
- 250 A 40 °C - 10 min for power circuit550 A 40 °C - 1 min for power circuit950 A 40 °C - 10 s for power circuit1100 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
- [Uc] Control Circuit Voltage
- 110 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Package Weight(Lbs)
- 2.257 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Electrical Durability0.8 Mcycles 200 A AC-1 <= 440 V, 0.95 Mcycles 115 A AC-3 <= 440 V, 0.95 Mcycles 115 A AC-3e <= 440 V
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw55 kW at 380/400 V AC 50/60 Hz (AC-3e), 59 kW at 415/440 V AC 50/60 Hz (AC-3e), 75 kW at 500 V AC 50/60 Hz (AC-3e), 80 kW at 660/690 V AC 50/60 Hz (AC-3e), 65 kW at 1000 V AC 50/60 Hz (AC-3e), 30 kW at 220/230 V AC 50/60 Hz (AC-3)55 kW at 380/400 V AC 50/60 Hz (AC-3)59 kW at 415/440 V AC 50/60 Hz (AC-3)75 kW at 500 V AC 50/60 Hz (AC-3)80 kW at 660/690 V AC 50/60 Hz (AC-3)65 kW at 1000 V AC 50/60 Hz (AC-3), 30 kW at 220/230 V AC 50/60 Hz (AC-3e), 18.5 kW at 400 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole24 W AC-17.9 W AC-3, 7.9 W AC-3e
Utilisation CategoryAC-3, AC-3e, AC-1, AC-4
[Ie] Rated Operational Current200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Connections - Terminalscontrol circuit: lugs-ring terminals - external diameter: 8 mmpower circuit: lugs-ring terminals - external diameter: 25 mm, power circuit: bars 1 - busbar cross section: 5 x 25 mm
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]4.425806016866926, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 22.22881266064238
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI100405EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1904
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance0.6 mOhm - Ith 200 A 50 Hz for power circuit
Compatibility CodeLC1D
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Mechanical Durability8 Mcycles
Operating Time6...20 ms opening20...50 ms closing
Pole Contact Composition3 NO
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Signalling Circuit Frequency25...400 Hz
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP0603001EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %54
Width Nominal120 mm
[Ith] Conventional Free Air Thermal Current200 A (at 60 °C) for power circuit
[Ue] Rated Operational Voltagepower circuit <= 1000 V AC 25...400 Hzpower circuit <= 300 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI100405EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Climatic WithstandIACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Recycled Metal Content At Cr Level0 %
Carbon Footprint109.17227631491296
Environmental DisclosureENVPEP0603001EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Permissible Ambient Air Temperature Around The Device-40-60 °C-40-60 °C60-70 °C with derating
Pep CodeENVPEP0603001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
