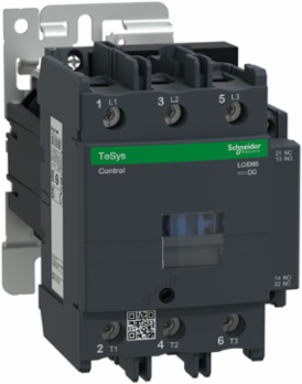

Schneider Electric LC1D95BD TeSys Deca Contactor 3P, 95A, 440V, 24V DC Coil, IP20
- MPN: LC1D95BD
- PPN: SCH-LC1D95BD
CAD
$694.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 95A/690V AC-3/AC-3e (45kW@400V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts, power connections by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC, EAC, Marine), Sustainability compliant. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, CCC, EAC, Marine). Contactor is supplied with a 24 VDC coil
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Depth186 mm
Complementary Attributes
- Irms Rated Making Capacity
- 1100 A at 440 V AC for power circuit conforming to IEC 60947, 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1
- Control Circuit Type
- DC standard
- Maximum Motor Phase Current
- 95 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
Maximum Horse Power Rating30 hp at 230/240 V AC 60 Hz for 3 phase motors7.5 hp at 120 V AC 60 Hz for 1 phase motors15 hp at 230/240 V AC 60 Hz for 1 phase motors, 30 hp at 200/208 V AC 60 Hz for 3 phase motors60 hp at 460/480 V AC 60 Hz for 3 phase motors, 60 hp at 575/600 V AC 60 Hz for 3 phase motors
Control Circuit Voltage Limits0.1...0.3 Uc (-40-70 °C):drop-out DC0.85...1.1 Uc (-40-55 °C):operational DC1...1.1 Uc (55-70 °C):operational DC
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- resistive load, motor control
- Insulation Resistance
- > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
- Motor Power Kw
- 45 kW at 380...400 V AC 50 Hz (AC-3e), 45 kW at 415...440 V AC 50 Hz (AC-3e), 55 kW at 500 V AC 50 Hz (AC-3e), 45 kW at 660...690 V AC 50 Hz (AC-3e)25 kW at 220...230 V AC 50 Hz (AC-3)45 kW at 380...400 V AC 50 Hz (AC-3), 45 kW at 415...440 V AC 50 Hz (AC-3)55 kW at 500 V AC 50 Hz (AC-3), 45 kW at 660...690 V AC 50 Hz (AC-3), 15 kW at 400 V AC 50 Hz (AC-4), 25 kW at 220...230 V AC 50 Hz (AC-3e)
- Power Dissipation Per Pole
- 12.5 W AC-17.2 W AC-3, 7.2 W AC-3e
- Utilisation Category
- AC-3, AC-3e, AC-4, AC-1
- Certificate Agency
- IECEE CB Scheme, CCC, EAC, LROS (Lloyds register of shipping), RINA, BV, DNV-GL
- [Ie] Rated Operational Current
- 95 A (at <60 °C) at <= 440 V AC-3 for power circuit, 125 A (at <60 °C) at <= 1000 V AC-1 for power circuit, 95 A (at <60 °C) at <= 440 V AC-3e for power circuit
- Connections - Terminals
- control circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: solid without cable endpower circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable endpower circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable endpower circuit: connector 1 4-50 mm² - cable stiffness: solid without cable endpower circuit: connector 2 4-25 mm² - cable stiffness: solid without cable endscrew clamp terminalscontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3416810635410429, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.5 kg CO2 eq., 0.4899056242009124
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 160 kg CO2 eq., 160.36942028985501
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1924
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1200 A gG at <= 690 V coordination type 1 for power circuit160 A gG at <= 690 V coordination type 2 for power circuit
- Coil Technology
- without built-in suppressor module
- Contact Compatibility
- M9
- Fire Resistance
- 850 °C IEC 60695-2-1
- Inrush Power In W
- 22-22 W 20 °C)
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- THIEC 60068-2-30
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 1.3 Mcycles contactor with nominal load EN/ISO 13849-1B10d = 20 Mcycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v5.9.4
- Time Constant
- 75 ms
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Inf Motor Phase Current
- 95 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 2400.24
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 127 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for signalling circuit125 A (at 60 °C) for power circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Hold-in Power Consumption In W
- 22-22 W 20 °C
- Package Weight(Lbs)
- 2.566 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability1.2 Mcycles 95 A AC-3, 1.3 Mcycles 125 A AC-1, 1.2 Mcycles 95 A AC-3e
Mechanical Robustnessvibrations contactor open 2 Gn, 5...300 Hz)shocks contactor open 8 Gn for 11 ms)vibrations contactor closed 3 Gn, 5...300 Hz), shocks contactor closed 10 Gn for 11 ms)
Mounting Supportrail, plate
Tightening Torquecontrol circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2power circuit 12 N.m connector flat Ø 6 to Ø 8 mmpower circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage24 V
[Icw] Rated Short-time Withstand Current1100 A 40 °C - 1 s for power circuit800 A 40 °C - 10 s for power circuit400 A 40 °C - 1 min for power circuit135 A 40 °C - 10 min for power circuit, 140 A - 100 ms for signalling circuit120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit
[Ui] Rated Insulation Voltagepower circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]6.461453621222985, 6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 17.320171625437503
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Compatibility CodeLC1D
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Mechanical Durability10 Mcycles
Operating Time95...130 ms closing20...35 ms opening
Pole Contact Composition3 NO
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Signalling Circuit Frequency25...400 Hz
Sustainable PackagingYes
Total Lifecycle Carbon Footprint185 kg CO2 eq.
Connections Terminalsscrew clamp terminals
Pep CodeENVPEP1102005EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %76
Width Nominal85 mm
[Uc] Control Circuit Voltage24 V24 V DC
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410045
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 184.98263222425743
- Environmental Disclosure
- ENVPEP1102005EN
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C-40-60 °C60-70 °C with derating
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Climatic WithstandIACS E10 exposure to damp heat
Eu Rohs DirectiveCompliant
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP1102005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
